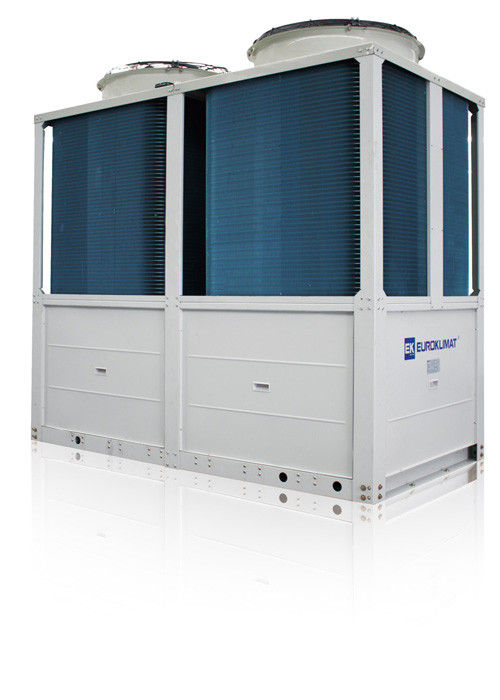

Eco Friendly 134kW Refrigerant Air cooled Modular Chiller Heat Pump Unit

Eco Friendly 134kW Refrigerant Air cooled Modular Chiller Heat Pump Unit

    • Eco Friendly 134kW Refrigerant Air cooled Modular Chiller Heat Pump Unit
    • Eco Friendly 134kW Refrigerant Air cooled Modular Chiller Heat Pump Unit
    • Eco Friendly 134kW Refrigerant Air cooled Modular Chiller Heat Pump Unit
  • Eco Friendly 134kW Refrigerant Air cooled Modular Chiller Heat Pump Unit

    Product Details:

    Place of Origin: China
    Brand Name: Euroklimat
    Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Model Number: EKAC460BR1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    COP: 3.35 Refrigerant: R410A
    Heating Capacity: 142-2272kW Cooling Capacity: 134-2144 KW
    Number Of Modules For A Modular Unit:: 16 Pcs Units Test Center: The EK Test Center Has Been Approved By The China National Accreditation Service For Conformity Assessment (CNAS).



    Environmentally-Friendly Refrigerant-Type Modular Air-Cooled Heat Pump Unit



    Specifications:



    Technical data sheet



    Model   EKAC 460B1 EKAC 460BR1 EKAC 920B1 EKAC 920BR1 EKAC 1380B1 EKAC 1380BR1
    Combination method Master EKAC 460B1M EKAC 460BR1M EKAC 460B1M EKAC 460BR1M EKAC 460B1M EKAC 460BR1M
    Slave -- -- EKAC 460B1S EKAC 460BR1S 2EKAC 460B1S 2EKAC 460BR1S
    Nominal refrigerating capacity kW 138 138 276 276 414 414
    USRT 39.24 39.24 78.48 78.48 117.72 117.72
    x104
    kcal/h
    11.87 11.87 23.74 23.74 35.61 35.61
    x104
    Btu/h
    47.10 47.10 94.2 94.2 141.3 141.3
    Nominal heating capacity kW -- 148 -- 296 -- 444
    USRT -- 42.08 -- 84.16 -- 126.24
    x10
    4kcal/h
    -- 12.73 -- 25.46 -- 38.19
    x104
    Btu/h
    -- 50.51 -- 101.02 -- 151.53
    Total power consumption under nominal refrigerating capacity kW 40.8 40.8 81.6 81.6 122.4 122.4
    Total power consumption under nominal heating capacity kW -- 42.5 -- 85.0 -- 127.5
    Power supply   380 V/3N~/50 Hz
    Refrigerant Type   R410A
    Control   Electronic expansion valve
    Compressor Type   Full hermetic scroll compressor
    Lubricant   Lipid oil (POE-160SZ)
    Qty. Piece 2 2 4 4 6 6
    Fan Type   Axial large-blade low-noise fan
    Qty. Piece 2 2 4 4 6 6
    Water-side heat exchanger Type   High-efficiency vacuum brazed heat exchanger
    Refrigerating water flow rate m3/h 23.7 23.7 47.4 47.4 71.1 71.1
    Heating water flow rate m3/h 25.5 h25.5 50.9 50.9 76.4 76.4
    Water resistance kPa 42 42 42 42 42 42
    Recommended length of inlet/outlet water pipe inch ≥3 ≥3 ≥4 ≥4 ≥5 ≥5
    Power wire Cross- sectional area of main wires mm2 35 35 95 95 185 185
    Qty. of main wires   3
    Cross- sectional area of neutral wire mm2 6 10
    Qty. of neutral wires   1
    Cross- sectional area of ground wire mm2 16 16 50 50 95 95
    Qty. of ground wires   1
    Dimensions L x H mm 2200×2260
    W mm 1150 1150 2900 2900 4650 4650
    Weight of unit Net weight kg 990 1020 1980 2040 2970 3060
    Weight of unit during running kg 1005 1035 2010 2070 3015 3105





    Model   EKAC1840B1 EKAC1840BR1 EKAC2300B1 EKAC2300BR1
    Combination method Master  EKAC460B1M EKAC460BR1M EKAC460B1M EKAC460BR1M
    Slave 3EKAC460B1S    3EKAC460BR1S    4EKAC460B1S    4EKAC460BR1S
    Nominal refrigerating capacity kW 552 552 690 690
    USRT 156.96 156.96 196.2 196.2
    x104
    kcal/h
    47.48 47.48 59.35 59.35
    x104
    Btu/h
    188.4 188.4 235.5 235.5
    Nominal heating capacity kW -- 592 -- 740
    USRT -- 168.32 -- 210.4
    x10
    4kcal/h
    -- 50.92 -- 63.65
    x104
    Btu/h
    -- 202.04 -- 252.55
    Total power consumption under nominal refrigerating capacity kW 163.2 163.2 204 204
    Total power consumption under nominal heating capacity kW -- 170.0 -- 212.5
    Power supply
    Refrigerant Type
    Control
    Compressor Type
    Lubricant
    Qty. Piece 8 8 10 10
    Fan Type
    Qty. Piece 8 8 10 10
    Water-side heat exchanger Type
    Refrigerating water flow rate m3/h 94.8 94.8 118.5 118.5
    Heating water flow rate m3/h 101.8 101.8 127.3 127.3
    Water resistance kPa 42 42 42 42
    Recommended length of inlet/outlet water pipe inch ≥6 ≥6 ≥6 ≥6
    Power wire Cross- sectional area of main wires mm2 240 240 185 185
    Qty. of main wires     6
    Cross- sectional area of neutral wire mm2
    Qty. of neutral wires
    Cross- sectional area of ground wire mm2 120 120 185 185
    Qty. of ground wires
    Dimensions L x H mm
    W mm 6400 6400 8510 8510
    Weight of unit Net weight kg 3960 4080 4950 5100
    Weight of unit during running kg 4020 4140 5025 5175



    Notes:
    ■ Working conditions of the unit for testing the nominal refrigerating capacity: Outlet temperature: 7°C; water flow rate: 0.172 m3/(h•kW); outdoor temperature: 35°C
    ■ Working conditions of the unit for testing the nominal heating capacity: Outlet temperature: 45°C; water flow rate: 0.172 m3/(h•kW); outdoor psychrometric difference: 7°C or 6°C
    ■ Water resistance includes differential water pressure of the unit and that of the affiliated Y-shape filter.
    ■ For combined units, the manufacturer does not offer general water pipes and they must be prepared and installed on site. Diameter of the pipes should comply with design standards.
    ■ A modular unit can be combined by same or different modules based on actual requirements; up to 16 modules can be built into a modular unit. The parameters listed in the table above are
    for commonly combined units.
    ■ Power distribution and wiring are subject to unit nameplates or installation guide.



    Description:

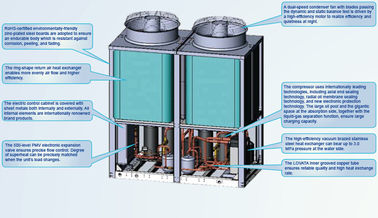

    1, The innovative EK air conditioner adopts the leading air-cooled heat pump design in Europe which enables an energy efficiency ratio (EER) in full load mode exceeding Chinese energy-saving product certification standard (higher than COP3.2).

    2, EKAC460BR1 series air-cooled modular unit adopts R410A. Compared with the conventional refrigerant R22, R410A does not contain chlorine and therefore has no adverse impact on the ozonosphere. It serves as a medium- and long-term substitute of R22.

    3, RoHS-certified environmentally-friendly zinc-plated steel boards are adopted to ensure an endurable body which is resistant against corrosion, peeling, and fading.

    4, The ring-shape return air heat exchanger enables more evenly air flow and higher efficiency.

    5, The electric control cabinet is covered with sheet metals both internally and externally. All internal elements are internationally renowned brand products..

    6, The 500-level PMV electronic expansion valve ensures precise flow control. Degree of superheat can be precisely matched when the unit’s load changes.

    7, A dual-speed condenser fan with blades passing the dynamic and static balance test is driven by a high-efficiency motor to realize efficiency and quietness at night..

    8, The compressor uses internationally leading technologies, including axial end sealing technology, radial oil membrane sealing technology, and new electronic protection technology. The large oil pool and the gigantic space at the absorption side, together with the liquid-gas separation function, ensure large charging capacity.

    9, The dual-system plate heat exchanger can bear up to 3.0 MPa pressure at the water side, applicable to water systems of super-high buildings.

    10, The LOVATA inner grooved copper tube ensures reliable quality and high heat exchange rate.

    11, The unit adopts anti-vibration design and multi-level noise reduction. The brand quiet full-hermetic scroll compressor; dual-speed quiet motor; blades passing the dynamic and static balance test ensures industry leading noise reduction grade and anti-vibration degree.

    12, Lower-part hermetic structure: The lower part of the unit is covered with sheet metals to insulate noise of a running compressor.

    13, An innovative smart silence mode is adopted. The fan speed (high/low gear) can be automatically adjusted based on unit’s running state and ambient temperature to allow a unit to work in quiet and low-noise mode. The noise at night is reduced by 6 dB (A).

    14, The EK test center has been approved by the China National Accreditation Service for Conformity Assessment (CNAS). By national-level test (with respect to corrosion, fatigue, frequent startup, etc), the modular unit is highly reliable.

    15, Defrosting conditions are automatically to save energy. Defrosting capability varies depending on the amount of frost, to maximize normal heating time and minimize temperature change caused by defrosting.

    16, The EK system can be composed of up to 16 modules. Any slave module of the system can take over works of a faulty master module, posing no adverse impact on the entire system. Besides, a part of load of the EK system is born alternately to balance load of the compressor.

    17, A modular unit is equivalent to two conventional modular units, saving up to 40% installation space.

    18, The unit helps you save investment into water system. A modular unit is equivalent to two conventional modular units, helping you save investment into an additional set of pipelines and accessories.

    19, The unit provides 13 powerful in-built protection functions, including: High-low pressure protection, inverse phase or lack-of-phase protection, frequent start protection, overcurrent protection, discharge temperature protection, overheat protection, sensor fault protection, chiller antifreeze protection, water system antifreeze protection, low water flow protection, and ambient temperature protection.

    20, The unit adopts a microcomputer control system and a large LCD to facilitate operation. A single control system can control up to 16 units and monitor their running state in real time. The optional RS485 COM interface is embedded with the Modbus protocol to realize group control.



    Applications:



    These units are applicable to places such as hotels, restaurants, recreational centers, hospitals, dining halls, offices, cinemas, factories, and supermarkets, especially to those rising high requirement on noise reduction and ambient environment and where water is lacking or cooling water tanks are inapplicable.



    Competitive Advantage:



    EKAC series environmentally-friendly refrigerant-type air-cooled heat pump units combine the essence of Euroklimat accumulated over 40-year air-cooled heat pump design experience with the demand in the modular unit market of China, to fully satisfy customers requirements on efficiency, environmental friendliness, comfort, safety, and smartness to the greatest extent. These units are applicable to places such as hotels, restaurants, recreational centers, hospitals, dining halls, offices, cinemas, factories, and supermarkets, especially to those rising high requirement on noise reduction and ambient environment and where water is lacking or cooling water tanks are inapplicable.

    Featuring flexibility in installation, quickness in construction, and simplicity in pipelining, these units allow phase-based and moderate investment and have no requirement on the chilled water system, therefore becoming one of the best choices for users.
