Horizontal Compact Return 30mm PU Insulation Air Handling Units With Jet

Horizontal Compact Return 30mm PU Insulation Air Handling Units With Jet

    • Horizontal Compact Return 30mm PU Insulation Air Handling Units With Jet
    • Horizontal Compact Return 30mm PU Insulation Air Handling Units With Jet
    • Horizontal Compact Return 30mm PU Insulation Air Handling Units With Jet
    • Horizontal Compact Return 30mm PU Insulation Air Handling Units With Jet
  • Horizontal Compact Return 30mm PU Insulation Air Handling Units With Jet

    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Model Number: EKDW-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: 15 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Air Handling Units With Jet Installation: Floor Installation
    Cooling Capacity(kW): 12-208 Heating Capacity(kW): 19-224
    Air Flow(m3/h): 2000-12000 Aluminum Fins: Shutter-type Hyperbolic And Hydrophilic Fins
    Test Pressure (Mpa): 3.3 Coils Rows: 4/6

    EK keeps looking for valuable distributors and partners around international markets…

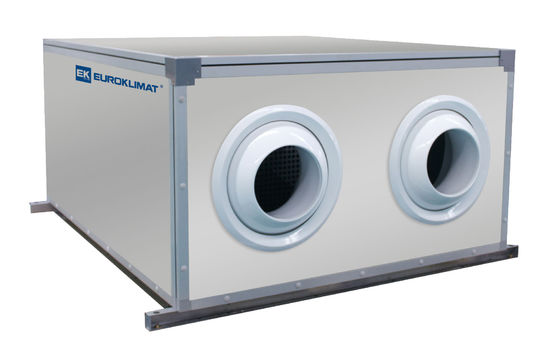

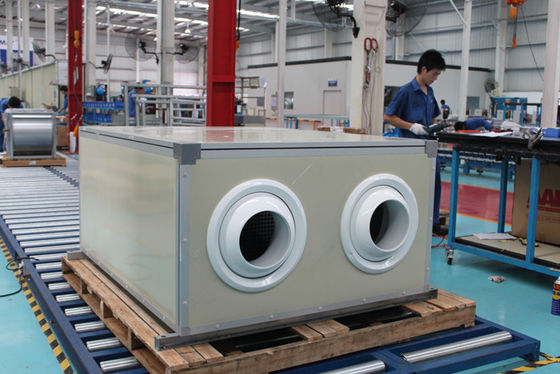

    Horizontal type Compact return 30mm PU insulation Air Handling Units with jet



    Specifications



    Model EKDW
    020S
    EKDW
    030S
    EKDW
    040S
    EKDW
    050S
    EKDW
    060S
    EKDW
    070S
    EKDW
    080H
    EKDW
    090S
    EKDW
    100S
    EKDW
    120S
    Nominal air flow (m3/h) 2000 3000 4000 5000 6000 7000 8000 9000 10000 12000
    Nominal cooling capacity (kW) 4 rows of coils (return air) 12 17 24 31 38 44 51 56 63 74
    4 rows of coils (fresh air) 29 42 57 69 83 94 113 127 142 169
    6 rows of coils (return air) 15 23 33 39 48 55 63 72 78 94
    6 rows of coils (fresh air) 35 53 69 88 105 122 137 155 173 208
    Nominal heating capacity (kW) 4 rows of coils (return air) 19 30 41 50 61 71 83 93 103 122
    4 rows of coils (fresh air) 33 49 66 82 99 115 133 148 161 197
    6 rows of coils (return air) 23 36 48 60 72 84 96 108 120 144
    6 rows of coils (fresh air) 38 57 77 95 114 132 150 169 188 224
    Nominal cooling water flow (L/S) 4 rows of coils (return air) 0.57 0.81 1.14 1.48 1.81 2.10 2.43 2.67 3.00 3.52
    4 rows of coils (fresh air) 1.38 2.00 2.71 3.29 3.95 4.48 5.38 6.05 6.76 8.05
    6 rows of coils (return air) 0.71 1.10 1.57 1.86 2.29 2.62 3.00 3.43 3.71 4.48
    6 rows of coils (fresh air) 1.67 2.52 3.29 4.19 5.00 5.81 6.52 7.38 8.24 9.90
    Nominal heating water flow (L/S) 4 rows of coils (return air) 0.43 0.68 0.92 1.13 1.37 1.71 1.87 2.24 2.32 2.75
    4 rows of coils (fresh air) 0.74 1.10 1.49 1.85 2.23 2.77 2.99 3.56 3.62 4.44
    6 rows of coils (return air) 0.52 0.81 1.08 1.35 1.62 2.02 2.16 2.60 2.70 3.24
    6 rows of coils (fresh air) 0.86 1.28 1.73 2.14 2.57 3.17 3.38 4.06 4.23 5.04
    Coil Type Copper tube with a new type of wavy aluminum fins
    Piece/inch 13
    Working pressure (MPa) 1.6
    Size of inlet/outlet water
    pipe connector
    R 1-1/2 R 1-1/2 R 1-1/2 R 1-1/2 R 1-1/2 R 2 R 2 R 2 R 2 R 2
    Size of condensate water
    pipe connector
    R1-1/4
    Fan Type/material High-efficiency forward-pitched centrifugal fans with multiple wings/zinc-plated steel plates
    Transmission V-belt transmission
    Fanning direction Downward horizontal/top
    Rang (number of nozzles) 4 rows of heat exchangers I

    10~20

    m(1)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    ~ ~
    II

    20~30

    m(1)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    III ~ ~ ~

    30~40

    m(1)

    30~40

    m(2)

    30~40

    m(1)

    30~40

    m(1)

    30~40

    m(1)

    30~40

    m(2)

    30~40

    m(2)

    6 rows of heat exchangers I

    10~20

    m(1)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    10~20

    m(2)

    ~ ~
    II

    20~30

    m(1)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    20~30

    m(2)

    III ~ ~ ~

    30~40

    m(1)

    30~40

    m(2)

    30~40

    m(1)

    30~40

    m(1)

    30~40

    m(1)

    30~40

    m(2)

    30~40

    m(2)

    Motor power (kW) 4 rows of heat exchangers I 0.55 0.75 0.75 1.1 1.5 1.5 1.5 2.2 ~ ~
    II 0.75 1.1 1.1 1.5 2.2 2.2 2.2 3.0 3.0 4.0
    III ~ ~ ~ 2.2 3.0 3.0 3.0 4.0 5.5 5.5
    6 rows of heat exchangers I 0.75 1.1 1.1 1.1 1.5 1.5 1.5 3.0 ~ ~
    II 1.1 1.5 1.5 1.5 2.2 2.2 2.2 3 3.0 4.0
    III ~ ~ ~ 2.2 3.0 3.0 3.0 4.0 5.5 5.5
    Filter Type Thickness (mm)
    Thickness (mm) 8/21
    Cabinet Type 30mm-thick double-layer plates filled with polyurethane material foamed under
    high pressure for heat preservation
    Unit
    Dimensions
    Length (mm) 820 950 1010 1130 1260 1300 1500 1620 1650 1750
    Width (mm) 1450 1450 1550 1550 1550 1600 1600 1600 1550 1550
    Height (mm) 630 650 755 755 805 830 830 830 890 950
    Unit weight
    (kg)
    4 rows of heat exchangers 135 149 179 195 222 247 282 300 369 389
    6 rows of heat exchangers 139 156 187 204 232 260 297 316 388 411



    EKDW features a professional air jet solution that is suitable for areas that is super large or high, areas where no air duct is installed, areas where air ducts cannot be installed and areas where conditioned air cannot be supplied to the bottom of a building from the rooftop. Such areas include air ports, bus stations, exhibition centers, factory plants, supermarkets, and lobbies, front doors and shafts of hotels.



    EKDW air jet units use high-performance ball-shaped sprayer as the air outlet, and can supply air over a maximum distance of 40 meters. The units can supply conditioned air over a long distance without air duct, thus saving space and operation cost and lowering the requirement on floor distance.



    EKDW air jet units can supply air 360° and the air supply direction can be manually adjusted. The air is similar to natural air and does not directly blow on people.Conditioned air is supplied to specified locations in the most comfortable way. Wide access door makes maintenance work very convenient.



    Optional accessories such as temperature/pressure drop alarms are available.Both air inlet and outlet are equipped with a flange to facilitate air coil connection.The unit can be mounted on the floor or hung from the ceiling.



    Functional section



    Mixing
    Primary efficiency filter : Nylon filter , Aluminum Filter, G3,G4 filter
    Bag  filter :F5,F6,F7,F8
    Cooled coil
    Heating coil
    Electric heater
    Wet film humidifier
    UVC
    Fan
