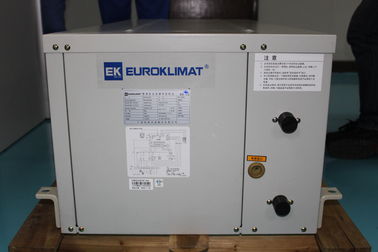

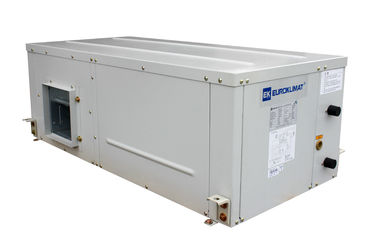

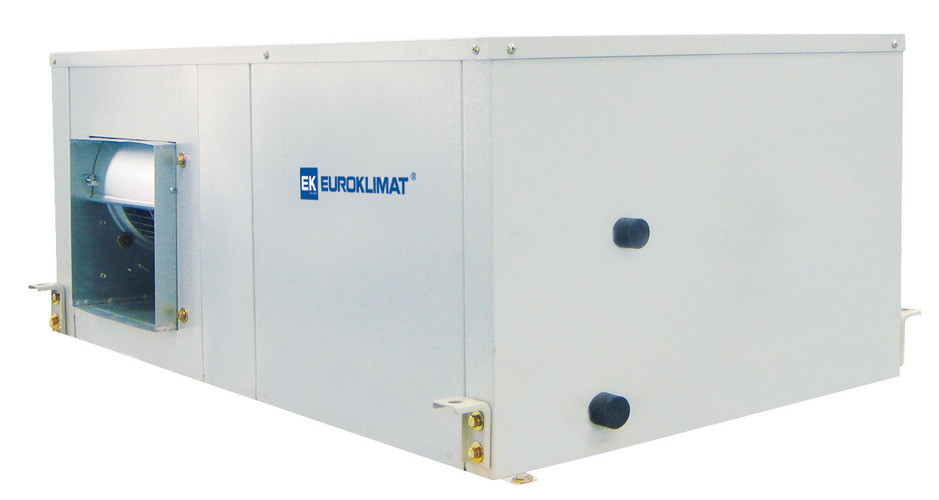

Horizontal Geothermal 3 Ton / 4 Ton Heat Pump Package Unit With Scroll Compressor

Horizontal Geothermal 3 Ton / 4 Ton Heat Pump Package Unit With Scroll Compressor

    • Horizontal Geothermal 3 Ton / 4 Ton Heat Pump Package Unit With Scroll Compressor
    • Horizontal Geothermal 3 Ton / 4 Ton Heat Pump Package Unit With Scroll Compressor
    • Horizontal Geothermal 3 Ton / 4 Ton Heat Pump Package Unit With Scroll Compressor
    • Horizontal Geothermal 3 Ton / 4 Ton Heat Pump Package Unit With Scroll Compressor
  • Horizontal Geothermal 3 Ton / 4 Ton Heat Pump Package Unit With Scroll Compressor

    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Model Number: EKWH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: 15 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 3,000pcs per month
    Detailed Product Description
    Product Name: Horizontal Water (Ground) Source Heat Pump Package Unit Installation: Ceiling Mounting
    Cooling Capacity(kW): 12.65-18.0 Heating Capacity(kW): 14.1-24.5
    Air Flow(m3/h): 2300-3350 ESP (Pa): 30-100
    Power Supply: 380-415V/3Ph/50hz Condenser Type: Tube In Tube
    Refrigerant Type: R22 Compressor Type: Scroll



    Horizontal Water (Ground) Source Heat Pump Package Unit 12.65-18.0kW



    Specifications



    Model   EKWH
    050A
    EKWH
    050AR
    EKWH
    060A
    EKWH
    060AR
    EKWH
    065A
    EKWH
    065AR
    Nominal cooling capacity W 12650 12650 16000 16000 18000 18000
    Nominal heating capacity W -- 14100 -- 19500 -- 24500
    Air flow m3/h 2300 2300 2700 2700 3350 3350
    Power supply   380-415V/3Ph/50Hz
    External static pressure Pa 30~100 30~100 30~100 30~100 30~100 30~100

    Unit dimensions

    (W × D × H)

    mm 1305x790x500 1305x790x500 1305x790x500
    Water- side heat exchanger Type   Efficient tube-in-tube heat exchanger
    Water flow m3/h 2.82 2.82 3.37 3.37 3.92 3.91
    Water pressure drop kPa 16 16 20 20 27 27
    Water pipe connector size   R1
    Compressor type   Scroll
    Input power Cooling W 3380 3390 4300 4150 4800 5040
    Heating W -- 3270 -- 4050 -- 4710
    Running current Cooling A 8.14 8.14 10.68 10.34 12.16 12.81
    Heating A -- 8.12 -- 10.24 -- 12.26
    Drain pipe size   φ19
    Refrigerant   R22
    Noise Integrated unit dB(A) 45 45 46 46 53 53
    Weight kg 157 160 162 165 172 175

    Note:

    ■   The preceding nominal cooling capacity is measured in the following conditions: the indoor dry/wet bulb reads 27°C/19°C, and the inlet/outlet water temperature is 30°C/35°C.

    ■   The preceding nominal heating capacity is measured in the following conditions: the indoor dry/wet bulb reads 20°C/15°C, and the inlet water temperature is 20°C.

    ■   The unit noise is a sound pressure level noise value measured through test in a semi-anechoic room according to relevant national.

    ■   The unit performance parameters are subject to change due to product improvements without prior notice. The parameters on the product nameplate prevail.

    ■   For details about on-site power distribution and wiring for unit installation, see the nameplate or installation manual of the unit.



    Description:


    EKWH series water (ground) source heat pump packaged unit has many features such as complete models, high efficiency, low noise, easy installation, and easy maintenance, and provides high air supply static pressure. It can send air over long distance through the air duct. Certain models can regulate the air supply direction to adapt to field installation. The packaged water source heat pump

    is applicable for various places such as commercial plaza, factory, hotel, and office building.



    Features





    Flexible structure



    EKWH overall water (ground) source heat pump packaged unit has a flexible structure. For example, EKWH008A(R)~EKWH070A(R) series is designed for ceiling mounting. The air supply direction can be changed from front air supply to side air supply. The

    EKWH180A(R)~EKWH350A(R) are horizontal/vertical and can be ceiling mounted or floor mounted. The air supply direction can be changed 90℃ .



    Convenient installation



    Compared with a split-type water source heat pump, packaged water source heat pump is easier to install. It runs as long as the circulating water pipe, air duct, and power supply are connected without installation of the refrigerant connection pipe and indoor/outdoor unit signal lines, greatly reducing unit hoisting workload.



    Smart Control



    The use of building automation (BA) systems is more and more popular. The BA systems make remote device management possible, and can efficiently improve the device utilization rate, shorten the maintenance time, and save energy. EKWH series packaged water source heat pump provides intelligent RS485 interfaces for easy network connection. All units provide optional power off memory and self start upon power recovery.



    Centralized management



    In a place with large story height, for example, a mall or factory, the large-scale integrated water source heat pump can be easily designed as a full air system to greatly reduce the number of air conditioning units and facilitate centralized management. The air conditioners can be installed in the equipment room or ceiling mounted.



    Higher Energy Efficiency



    EKWH series water (ground) source packaged heat pump unit uses select world famous brand compressors and high-efficiency inner thread coaxial tube-in-shell heat exchangers. Through fine matching, the average cooling energy efficiency ratio can reach over 4.0. Certain units provide a cooling energy efficiency ratio of more than 4.5. For a large-capacity cooling unit with over 10 hp, parallel design for compressors is adopted for higher reliability and energy efficiency.



    Multiple Protections



    EKWH series packaged water source heat pump is designed with multiple security protection functions. In addition to regular under-voltage, over-voltage, and overload protection, the following protection functions are provided: pressure protection of the cooling system, protection against water flow cutoff, and protection against over-temperature of the circulating water. In addition, the controller provides sound, light, and code alarms to report fault and protection information in a timely manner.



    Applications



    Commercial plaza, factory, villa, hotel, and office building.
