    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Model Number: EKDM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: 15 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Clean Room ( AHU ) Return Air Handling Units Installation: Ceiling/floor Installation
    Cooling Capacity(kW): 25-300 Heating Capacity(kW): 28-330
    Air Flow(m3/h): 5000-60000 Aluminum Fins: Shutter-type Hyperbolic And Hydrophilic Fins
    Test Pressure (Mpa): 3.3 Coils Rows: 4/6

    EK keeps looking for valuable distributors and partners around international markets…

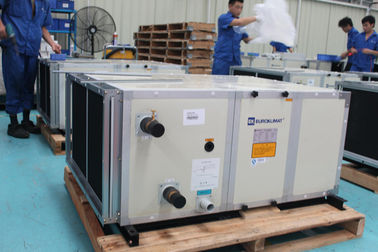

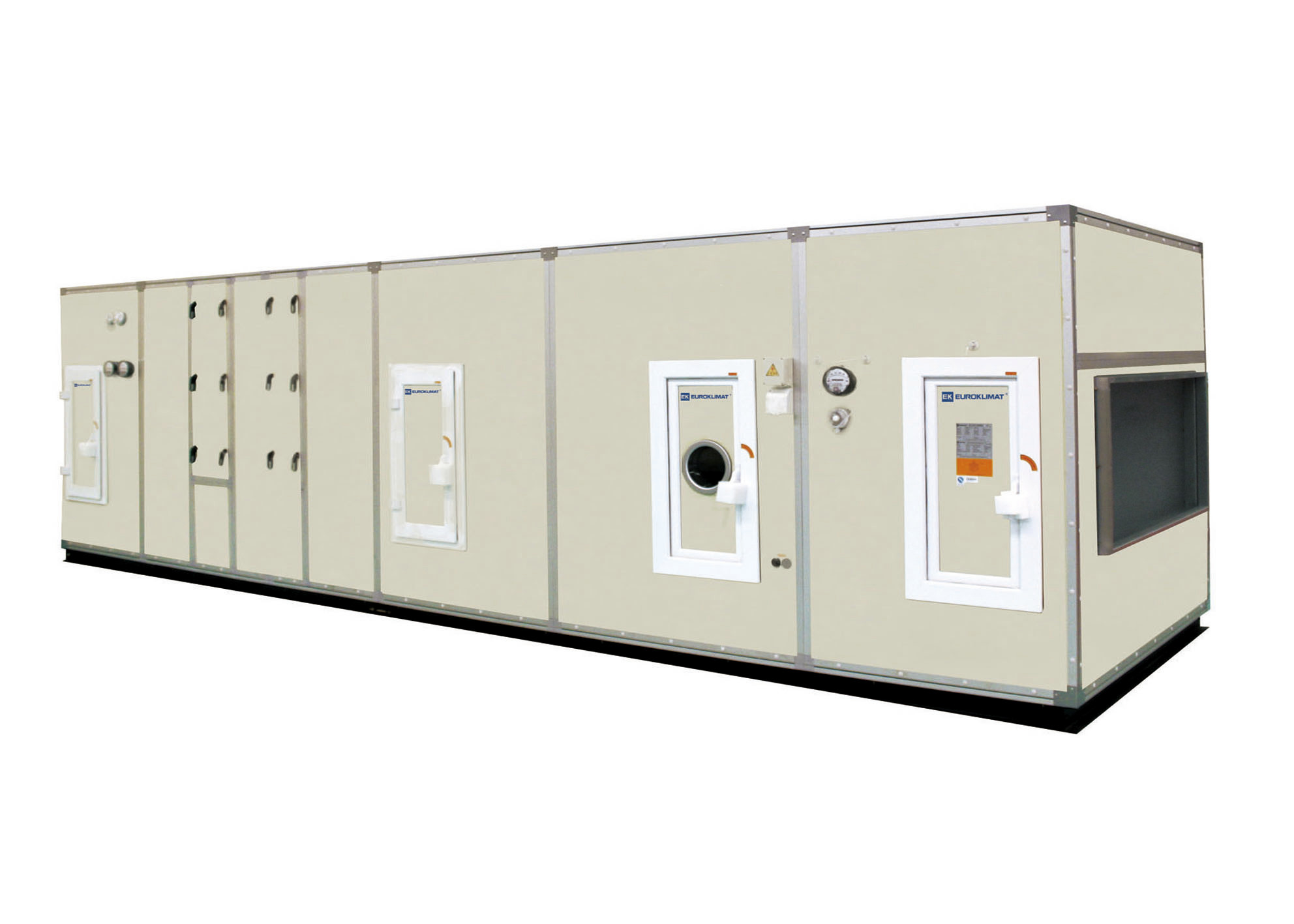

    Double skin clean room ( AHU ) return air handling units indoor installation





    EKDM air flow range is from 1000m3/h to 400000m3/h. Available functional sections include fresh/return air mixing section, cooling section, heating section, primary/medium/high efficiency filter section, electric heating section, humidifying section, sound attenuation section, heat recovery section, secondary air-return section, fan section, air diffuser section etc. Different combinations can meet different air handling requirements.



    •   The surface  of the unit is made of quality color steel, which can resist corrosion, scratch and ultraviolet radiation.


    •    Internal panels are made of steel plates galvanized  with aluminum and zinc, with an assured  service life of more than 15 years. All panels  feature  end-to-end  joints and smooth surfaces, without any bur or corroded point.


    •    The internal panels feature reinforced design, which is strong enough to support the largest  air handling unit.


    •    The unit panel  has two thicknesses,  namely  30mm and 50mm.Inside  the panel, hermetically foamed polyurethane (no fluorine) with a density of 48kg/m3 is used as the heat- insulating material. The heat conductivity factor is less than 0.02W/m°C.


    •    Each functional section of the unit is equipped  with a steel trough base, thus  ensuring  it is well supported,  easy to transport and assemble. The overall robustness of the unit meets the  standard of CEN2.



    Filter as below :



    China Primary efficiency 5μm Medium efficiency 1μm Medium high efficiency 1μm Sub-high efficiency 0.5μm High efficiency 0.5μm
    GB/T14295 50% > Efficiency > 20% 70% > Efficiency > 20% 99% > Efficiency >
    70%
    99.9% > Efficiency > 95% Efficiency > 99.99%
    USA ASHRAE C1

    C2~

    C4

    L5 L6 L7 L8 M9 M10 M11 M12 M13 M14 H12-H16 VH17 VH18 VH19 VH20
    Europe New
    standard
    G1 G2 G3 G4 F5 F6 F7 F8 F9 H10 H11 H12 H13 H14

    V15,

    V17

    efficiency 65% 80% 80-90% > 90% 40% 60% 80% 90% 85% 95% 99% 99.9% 99.995%

    99.

    995%

    99.

    9995%

    Old
    speci-fication
    EU1 EU2 EU3 EU4 EU5 EU6 EU7 EU8 EU9 EU10 EU11 EU12 EU13 EU14



    Specifciations



    Model
    EKDM
    Rated air flow m3/h Windward area of coil (m2) Air flow (m3/h) Diameter  of fan impeller mm Fan performance
    2.25 2.50 2.75 3.00 Max. total pressure of fan Pa Max. motor power kW
    m/s m/s m/s m/s
    306 2000 0.23 1863 2070 2277 2484 160 1300 2.2
    406 3000 0.34 2754 3060 3366 3672 200 1300 3
    407 4000 0.41 3321 3690 4059 4428 225 1500 3
    408 5000 0.48 3888 4320 4752 5184 250 1800 5.5
    508 6000 0.65 5265 5850 6435 7020 280 1800 7.5
    607 7000 0.69 5589 6210 6831 7452 280 1800 7.5
    608 8000 0.81 6561 7290 8019 8748 315 1800 7.5
    511 9000 0.94 7614 8460 9306 10152 315 1800 11
    610 10000 1.05 8505 9450 10395 11340 355 2000 11
    611 12000 1.17 9477 10530 11583 12636 400 2000 15
    712 15000 1.55 12555 13950 15345 16740 450 2000 15
    812 18000 1.81 14661 16290 17919 19548 500 2000 18.5
    813 20000 1.98 16038 17820 19602 21384 500 2000 18.5
    915 25000 2.66 21546 23940 26334 28728 560 2000 22
    1015 30000 2.99 24219 26910 29601 32292 630 2000 30
    1313 35000 3.40 27540 30600 33660 36720 630 2000 30
    1315 40000 3.99 32319 35910 39501 43092 710 2000 30
    1515 45000 4.65 37665 41850 46035 50220 800 2000 37
    1417 50000 4.95 40095 44550 49005 53460 800 2000 45
    1520 60000 6.36 51516 57240 62964 68688 900 2000 45
    1720 70000 7.27 58887 65430 71973 78516 900 2000 55
    1722 80000 8.05 65205 72450 79695 86940 1000 2000 75
    1626 90000 9.01 72981 81090 89199 97308 1000 2000 75
    1826 100000 10.21 82701 91890 101079 110268 1120 2000 110
    1852 2000000 20.42 165402 183780 202158 220536 1120x2 2000 110x2
    3652 4000000 40.84 330804 367560 404316 441072 1120x4 2000 110x4



    Note:
    ■ This table only lists some typical models among many models for quick model selection.
    ■ Total fan pressures listed above are tested on standard fans with rated air flow.
    ■ External residual pressure = Total fan pressure - Internal resistance. For internal resistance of EKDM units.
