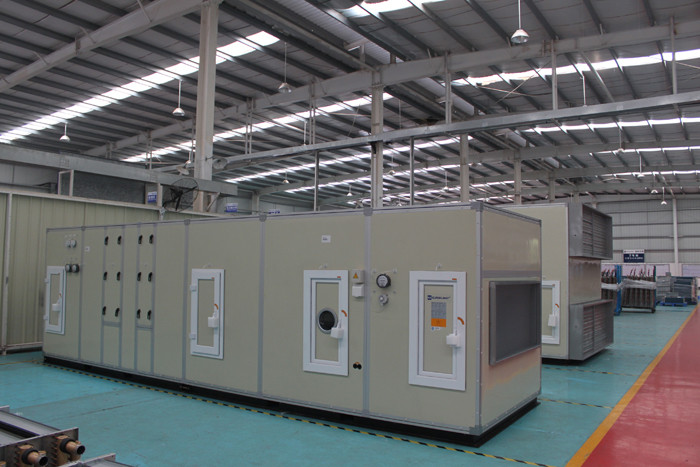

Humidifying HVAC Air Handling Unit With Backward Fan High ESP

Humidifying HVAC Air Handling Unit With Backward Fan High ESP

    • Humidifying HVAC Air Handling Unit With Backward Fan High ESP
  • Humidifying HVAC Air Handling Unit With Backward Fan High ESP

    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Model Number: EKDM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: 15 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Humidifying (AHU) Air Handling Units Installation: Ceiling/floor Installation
    Air Flow(m3/h): 2,000-400,000 Aluminum Fins: Shutter-type Hyperbolic And Hydrophilic Fins
    Test Pressure (Mpa): 3.3 Coils Rows: 4/6
    High Light:

    hvac air handling unit

    ,

    chilled water air handling unit





    Humidifying (AHU) air handling units with backward fan high ESP





    EKDM air flow range is from 1000m3/h to 400000m3/h. Available functional sections include fresh/return air mixing section, cooling section, heating section, primary/medium/high efficiency filter section, electric heating section, humidifying section, sound attenuation section, heat recovery section, secondary air-return section, fan section, air diffuser section etc. Different combinations can meet different air handling requirements.



    •   The surface  of the unit is made of quality color steel, which can resist corrosion, scratch and ultraviolet radiation.


    •    Internal panels are made of steel plates galvanized  with aluminum and zinc, with an assured  service life of more than 15 years. All panels  feature  end-to-end  joints and smooth surfaces, without any bur or corroded point.


    •    The internal panels feature reinforced design, which is strong enough to support the largest  air handling unit.


    •    The unit panel  has two thicknesses,  namely  30mm and 50mm.Inside  the panel, hermetically foamed polyurethane (no fluorine) with a density of 48kg/m3 is used as the heat- insulating material. The heat conductivity factor is less than 0.02W/m°C.


    •    Each functional section of the unit is equipped  with a steel trough base, thus  ensuring  it is well supported,  easy to transport and assemble. The overall robustness of the unit meets the  standard of CEN2.





    Humidifying section



    The relative humidity of the air changes as areas and seasons change. Different operating conditions have different requirements on humidity. In dry areas and seasons, or in environment that requires high humidity, you may need to install a humidifier. Standard humidifiers for EKDM series units use dry steam. In addition, EK also provides high-pressure spray, wet film humidifying, electrode humidifying etc. If you have any special requirements on humidifying, please contact EK.



    Humidifier Introduction



    High-pressure spray humidifier—equal-enthalpy humidifying; water distribution pipes and nozzles made from stainless steel; high pressure spray; efficient, safe, reliable and energy saving.



    Wet film humidifier— saturation efficiency; space-saving; reducing total length of the unit; no water handling; safe and reliable.



    Dry steam humidifier—equal-temperature humidifying; high humidifying efficiency; made from stainless steel; graceful exterior; and corrosion proof.



    Electrode humidifier—high humidifying efficiency; multiple control solutions to choose from.



    Electric heating humidifier——efficient and accurate.



    Humidifier Comparison



    Type of humidifier Working conditions
    Environment temp. (°C) Humidity Critical wind speed (m/s) Water quality Water/steam temp. (°C) Water/steam pressure (MPa) Length of humidifying section
    (mm)
    High-pressure spray humidifier 1 ~ 40 ≤ 85% 0.5 ~ 3.5 Tap water, purified water or water with similar quality 4 ~ 55 0.1 ~ 0.5 960
    Dry steam humidifier -10 ~ 50 / 0.5 ~ 3.5 Steam 0<150 0.02 ~ 0.4 640
    Wet film humidifier 5 ~ 100 < 90% ≤ 4.0 Tap water or water with similar quality 5 ~ 40 0.15 ~ 0.75 Can be installed together with cooling coil
    Electrode humidifier 0 ~ 40 < 85% / Clean tap water or softened water 4 ~ 35 0.1 ~ 1.0 640
    Electric heating humidifier 0 ~ 40 < 85% / Clean tap water, softened water or deionized water 4 ~ 35 0.1 ~ 0.3 640



    Dry Steam Humidifier



    Humidifiers should be chosen according to the control solution, steam pressure, required humidifying capacity and the width of the unit.





    Dry Steam Humidifying Capacity Table



    model
    Nozzle Dia.
    GZQ - 15 GZQ -20 GZQ -40 GZQ -50
    Steam pressure φ2 φ4 φ6 φ8 φ9 φ10 φ10.5 φ12 φ14 φ16 φ18
    0.02MPa 1.5 4 9 22.5 27 34 40 55 75 145 187
    0.1MPa 2.3 9.4 21.3 49.5 62 75.5 78 102 141 194 246
    0.2MPa 3.6 14 35 68.5 106 131 142 160 216 311 397
    0.3MPa 4.5 18.3 40 97.5 152 187 205 217 296 448 569
    0.4MPa 6.1 24.5 58.5 124 196 227 250 275 375 590 760



    Unit width 4M 5M 6M 7M 8M 9M 10M 11M 12M 13M 14M
    Spout code L3 L3 L4 L4 L5 L5 L6 L6 L7 L7 L8
    Weight of Model 15 (kg) 10 10 11 11 12 12 13 13 14 14 15
    Weight of Model 20 (kg) 12 12 13 13 14 14 15 15 16 16 17
    Weight of Model 40 (kg) 13 13 14 14 15 15 16 16 17 17 19
    Weight of Model 50 (kg) 14 14 15 15 16.5 16.5 18 18 19 19 21



    Unit width 15M 16M 17M 18M 19M 20M 21M 22M 23M ~ 26M
    Spout code L8 L9 L9 L10 L10 L11 L11 L12 L13
    Weight of Model 15 (kg) 15 16 17 18 19 20 21 22 23
    Weight of Model 20 (kg) 17 18 19 20 21 22 23 24 25
    Weight of Model 40 (kg) 19 20 21 22 23 24 25 26 27
    Weight of Model 50 (kg) 21 22 23 24 25 26 27 28 29



    Wet film humidifier



    Wet film humidifier humidifies the air through natural water evaporation. Its paper-like medium is made of macromolecule inorganic material which is highly hydrophilic. When dry air passes through the medium, water in the medium takes up heat in the air and evaporates to humidify the air. Wet film humidifier can use domestic water or tap water, and has the following advantages:



    ■ Clean humidification—no “white powder” produced during temperature drop



    ■ Humidifying distance—the thickness of the wet film itself



    ■ High saturation efficiency—up to 80%



    ■ Safe and reliable—the film material is mildew and bacteria proof, with a service life up to 8 ~ 10 years



    ■ Excellent cooling performance—cooling through filling-catalyzed direct evaporation; more efficient cooling with less space Wet-film Humidifying Capacity for Typical Units



    Model EKDM Rated air flow
    m3/h
    Fresh air conditions (kg/h) Return air conditions (kg/h)
    35%
    efficiency
    60%
    efficiency
    75%
    efficiency
    85%
    efficiency
    35%
    efficiency
    60%
    efficiency
    75%
    efficiency
    85%
    efficiency
    306 2000 4 9 11 12 4 7 9 10
    406 3000 7 13 16 18 5 10 13 15
    407 4000 8 15 20 22 7 13 16 18
    408 5000 9 18 23 26 8 15 19 22
    508 6000 13 24 31 35 10 20 25 29
    607 7000 14 26 33 37 11 21 27 31
    608 8000 16 30 39 44 13 25 32 36
    511 9000 19 35 45 52 15 29 37 42
    610 10000 21 39 50 57 17 32 41 47
    611 12000 23 44 56 64 19 36 46 52
    712 15000 30 58 74 84 25 48 60 69
    812 18000 35 67 86 98 29 55 70 80
    813 20000 39 74 94 107 32 60 77 88
    915 25000 52 99 126 144 42 81 103 118
    1015 30000 60 114 145 166 49 93 119 136
    1313 35000 67 128 163 187 55 105 134 153
    1315 40000 79 150 191 219 64 123 157 179
    1515 45000 91 175 222 254 75 143 182 208
    1417 50000 97 185 237 271 80 153 194 222
    1520 60000 122 233 297 339 100 191 243 278
    1720 70000 139 266 338 386 114 218 277 316
    1722 80000 154 295 375 429 126 241 307 351
    1626 90000 173 332 422 482 142 272 346 395
    1826 100000 196 375 477 545 160 307 391 446




    Note: standard fresh air conditions: temperature of 28°C and relative humidity of 15%; mixed air conditions: containing 30% of fresh air.





    Specifciations



    Model
    EKDM
    Rated air flow m3/h Windward area of coil (m2) Air flow (m3/h) Diameter  of fan impeller mm Fan performance
    2.25 2.50 2.75 3.00 Max. total pressure of fan Pa Max. motor power kW
    m/s m/s m/s m/s
    306 2000 0.23 1863 2070 2277 2484 160 1300 2.2
    406 3000 0.34 2754 3060 3366 3672 200 1300 3
    407 4000 0.41 3321 3690 4059 4428 225 1500 3
    408 5000 0.48 3888 4320 4752 5184 250 1800 5.5
    508 6000 0.65 5265 5850 6435 7020 280 1800 7.5
    607 7000 0.69 5589 6210 6831 7452 280 1800 7.5
    608 8000 0.81 6561 7290 8019 8748 315 1800 7.5
    511 9000 0.94 7614 8460 9306 10152 315 1800 11
    610 10000 1.05 8505 9450 10395 11340 355 2000 11
    611 12000 1.17 9477 10530 11583 12636 400 2000 15
    712 15000 1.55 12555 13950 15345 16740 450 2000 15
    812 18000 1.81 14661 16290 17919 19548 500 2000 18.5
    813 20000 1.98 16038 17820 19602 21384 500 2000 18.5
    915 25000 2.66 21546 23940 26334 28728 560 2000 22
    1015 30000 2.99 24219 26910 29601 32292 630 2000 30
    1313 35000 3.40 27540 30600 33660 36720 630 2000 30
    1315 40000 3.99 32319 35910 39501 43092 710 2000 30
    1515 45000 4.65 37665 41850 46035 50220 800 2000 37
    1417 50000 4.95 40095 44550 49005 53460 800 2000 45
    1520 60000 6.36 51516 57240 62964 68688 900 2000 45
    1720 70000 7.27 58887 65430 71973 78516 900 2000 55
    1722 80000 8.05 65205 72450 79695 86940 1000 2000 75
    1626 90000 9.01 72981 81090 89199 97308 1000 2000 75
    1826 100000 10.21 82701 91890 101079 110268 1120 2000 110
    1852 2000000 20.42 165402 183780 202158 220536 1120x2 2000 110x2
    3652 4000000 40.84 330804 367560 404316 441072 1120x4 2000 110x4



    Note:
    ■ This table only lists some typical models among many models for quick model selection.
    ■ Total fan pressures listed above are tested on standard fans with rated air flow.
    ■ External residual pressure = Total fan pressure - Internal resistance. For internal resistance of EKDM units.
