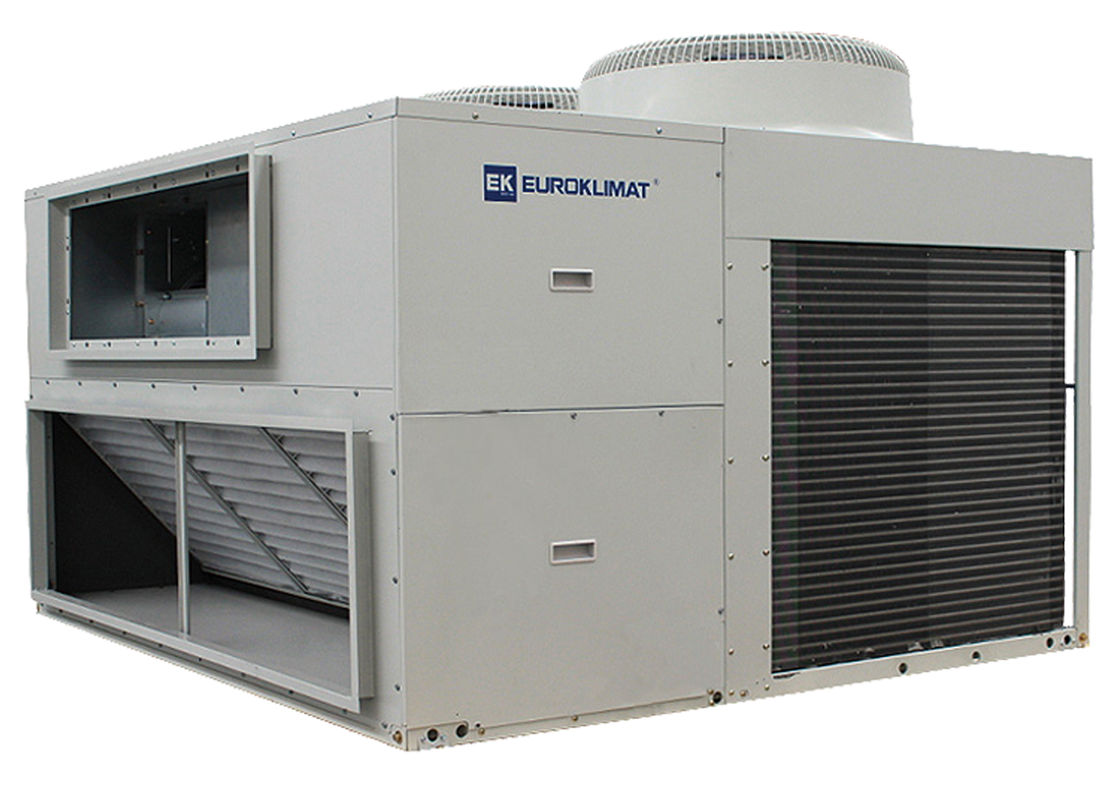

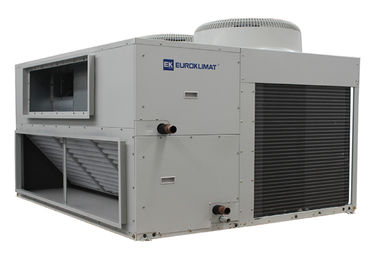

Large Ducted Packaged Rooftop Unit Commercial Rooftop Hvac Units

Large Ducted Packaged Rooftop Unit Commercial Rooftop Hvac Units

    • Large Ducted Packaged Rooftop Unit Commercial Rooftop Hvac Units
    • Large Ducted Packaged Rooftop Unit Commercial Rooftop Hvac Units
  • Large Ducted Packaged Rooftop Unit Commercial Rooftop Hvac Units

    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Model Number: EKRT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: Pallet
    Delivery Time: 30 working days after received your payment
    Payment Terms: T/T or L/C
    Supply Ability: 900pcs per month
    Detailed Product Description
    Product Name: Rooftop Package Unit Installation Space: Rooftop
    Cooling Capacity(kW): 43.5~118 Refrigerant: R410A
    Power Source(V/Ph/Hz): 380~415/3N/50 Unit Minimum Dimensions L×H×W (mm×mm×mm): 2205×1895×1850
    Air Discharge: Ducted

    Humidification and air purification rooftop package unit



    Specifications:



    Parameters
    Parameters (EKRT150A-EKRT420A R410A refrigerant)
    MODEL EKRT150A EKRT200A EKRT250A EKRT300A EKRT360A EKRT420A
    NOMINAL CAPACITY W 43500 57500 72500 87000 96500 118000
    NOMINAL TOTAL INPUT POWER W 16500 21500 27560 34500 38500 46800
    NOMINAL RUNNING CURRENT A 31 41 53 66 74 90
    POWER SOURCE V/Ph/Hz 380~415/3N/50
    REFRIGERANT TYPE / CONTROL   R410A/TXV
    EVAPORATOR CONTROL AIR DISCHARGE DUCTED
    OPERATION SLM CONTROLLER
    AIR FLOW CMH 9500 11400 13600 16300 18700 21300
    EXTERNAL STATIC PRESSURE Pa/in.wg. 200/0.79 300/1.18 300/1.18
    CONDENSATE DRAIN SIZE R 1 R 1 R 1
    CONDENSER AIR FLOW CMH 22000 38000 40000
    SOUND PRESSURE LEVEL dB(A) 69 69 74 74 76 76
    HOT WATER COIL COIL ROWS 2
    WATER INLET/ OUTLET SIZE R 1 1/2
    HEATING CAPACITY W 96000 108800 140800 158200 199600 219900
    WATER FLOW l/s 2.15 2.43 3.15 3.54 4.46 4.92
    WATER PRESSURE DROP KPa 16 20 8 10 12 15
    NOMINAL RUNNING CURRENT A 31 41 53 66 74 90
    DIMENSIONS L×H×W (mm×mm×mm)

    2205×1895

    ×1850

    2205×1895

    ×1850

    3465×2345

    ×2290

    3465×2345

    ×2290

    3865×2345

    ×2290

    3865×2345

    ×2290

    NET WEIGHT KG 780 800 1450 1480 1600 1600



    1)  NOMINAL COOLING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
    COOLING: 27°C DB / 19°C WB INDOOR AND 35°C DB OUTDOOR, POWER SUPPLY 380V/3N/50Hz
    HOT WATER COIL HEATING: 21ºC DB INDOOR, WATER INLET 82ºC AND WATER OUTLET 71ºC
    2)  EFFECTIVE POWER INPUT IS USED IN THE RATED EER/COP CALCULATION, ACCORDING TO ISO STANDARD: ISO
    5151 & ISO 13253





    Description:



    Anti-corrosive, rust-proof and adaptable

    EKRT roof air-conditioning unit needs to be installed on the open roof. Therefore, higher anti-corrosive and waterproof requirements are raised for the unit. The shell of roof air-conditioning unit is made of electro-galvanized steel that goes through electrostatic anti-corrosive coating and therefore can adapt to various outdoor climatic environments.





    Intelligent control and simple operation



    ■ EKRT roof air-conditioning unit series is equipped with intelligent controllers, which facilitates operation management.

    ■ The main unit is integrated with the electrical part in terms of design. You just need to connect the unit to the power supply, which saves complex electrical connection engineering.

    Efficient, energy-saving, safe and reliable

    ■ EKRT roof air-conditioning unit uses an efficient scroll compressor, featuring high energy efficiency ratio and high reliability.

    ■ EKRT air-conditioning unit is designed in an overall structure and is totally completed in the plant, which avoids outstanding issues such as poor copper pipe welding on site and filling of unclean refrigerant on site and improves the system reliability and energy-saving effect.

    Flexible installation and space-saving

    During design, EKRT roof air-conditioning unit takes users’ installation requirements into full consideration. Therefore, it adopts a compact overall structure. The base evenly bears the weight of the compressor, heat exchange coil, blower and connecting pipes. After fixing the integrated unit on the roof, you can complete installation of the air-conditioning unit.

    ■ EKRT roof air-conditioning unit is equipped with two interfaces for connecting air pipes in the horizontal direction and in the vertical direction. You can flexibly select one interface according to field installation conditions.

    ■ EKRT air-conditioning unit is installed on the roof, which facilitates introduction of outdoor fresh air.

    ■ Because the blower uses a V-belt to drive the unit, EKRT air-conditioning unit can adjust the air volume and air pressure as required.

    ■ EKRT air-conditioning unit is directly installed on the roof, without occupying indoor space.



    Range of operating temperature



    Large Ducted Packaged Rooftop Unit Commercial Rooftop Hvac Units



    Large Ducted Packaged Rooftop Unit Commercial Rooftop Hvac Units



    Applications:



    large factory buildings and workshops that need to control temperature, humidity and cleanliness in the areas where it is inconvenient to install water systems or areas that are short of water resources.

    Competitive Advantage:

    EKRT unit using R410A refrigerant meets the energy saving and environmental protection.

    Flexible installation and space-saving. EKRT adopts a compact overall structure. Unit is installed on the roof, which facilitates introduction of outdoor fresh air.



    Large Ducted Packaged Rooftop Unit Commercial Rooftop Hvac Units
