| Place of Origin: | China |
| Brand Name: | EuroKlimat |
| Certification: | ISO9001, ISO14001, OHSAS18001, CRAA, CQC |
| Model Number: | EKAS093~420B3E |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units per month |
| Cooling Capacity(kW): | 93~420 Tons | Heating Capacity(kW): | 93~420 Tons |
|---|---|---|---|

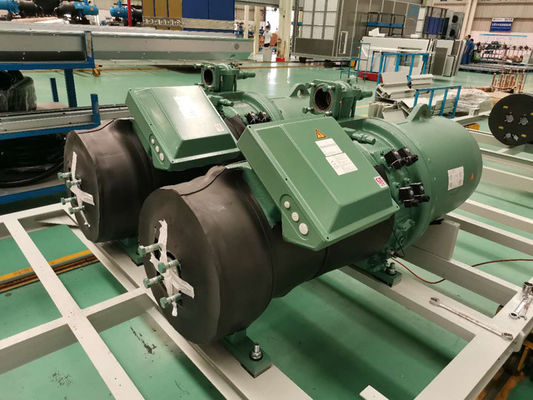

| Power Supply: | 380V/3~/50Hz | Compressor Type: | Bizter Dual Screw Compressor |
| High Light: | Dual Screw Air Cooled Water Chiller,Compressor Air Cooled Water Chiller,420t air cooled chiller |
||

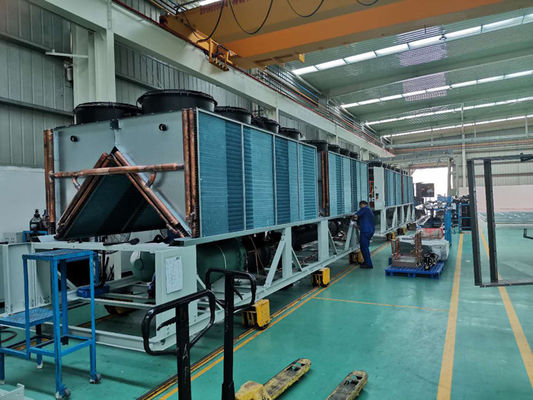

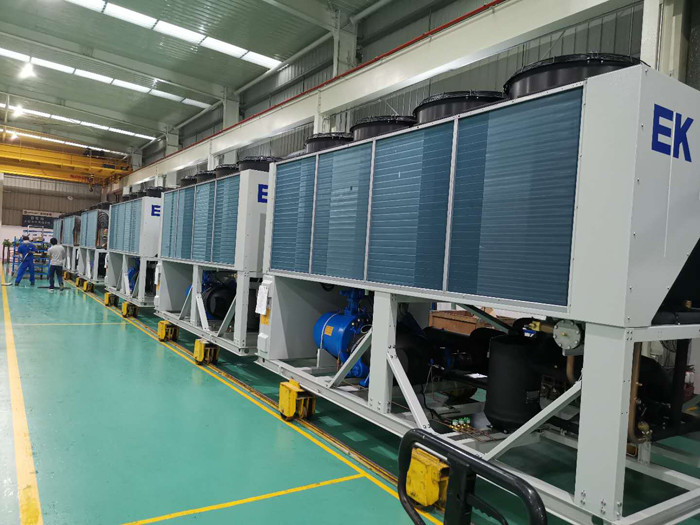

dual screw compressor air cooled screw chiller
EK keeps looking for valuable distributors and partners around international markets…
The full series units adopt electronic expansion valve control technology with independent power supply. The design of dual power supply implements optimal control for superheating and ensures high-performance running of the unit. The precise PID flow control through electronic expansion valves allows stable refrigerant control, protects the compressors, and monitors air exhausted by compressors, avoiding faults of compressors.
General Specifications
Environmental Friendly-EKAS is an air cooled screw chiller which use dual screw compressor with R134a refrigerant
High Efficiency- thanks to dual screw compressor , sub-cooling design , M shape condenser ,economizer , PROVIDES shell and tube evaporator ,DANFOS electronic expansion valve and patent aerofoil aluminum fan .
Capacity Continuous Adjustment -With intelligent controller , EK chiller performs a prompt adjustment according to system load to ensure the precisely chilled water temperature . What’s more , it will unload automatically at extremely high ambient temperature to protect compressor.
10.1” Touch Screen -is directly connected to the microprocessor , providing monitoring history data recording ,safety protection ,and more convenient operation .
Widely Applications -EKAS is the idea solution for commercial building & industrial applications that required high performance ,continuous operation , lower operation and maintenance cost .
BMS (Optional)-EK provide an RS485 standard communication interface , which is more convenient to joint with building management system . Standard protocol includes BacNet ,Modbus and Lonwork .
Chiller Manage System (Optional)- EK provide intelligent CMS for centralized control on several air cooled screw chillers to balance each unit running time ,and perform automatically switchover on a fault unit , ensuring the whole system stable running & energy saving .
| Model | —B3E | EKAS247 | EKAS257 | EKAS277 | EKAS291 | EKAS313 | EKAS335 | EKAS359 | EKAS371 | EKAS388 | EKAS420 | |
| Nominal cooling capacity |
kW | 866.5 | 903.7 | 972.8 | 1023.3 | 1100.7 | 1178.1 | 1260.6 | 1303.9 | 1361.7 | 1475.2 | |
| USRT | 246.4 | 257.0 | 276.6 | 291.0 | 313.0 | 335.0 | 358.4 | 370.7 | 387.2 | 419.4 | ||
| ×104 kcal/h | 74.5 | 77.7 | 83.7 | 88.0 | 94.7 | 101.3 | 108.4 | 112.1 | 117.1 | 126.9 | ||
| Cooling compressor power |
kW | 292.0 | 297.8 | 320.3 | 341.7 | 363.6 | 385.4 | 420.6 | 428.5 | 456.8 | 504.2 | |
| Control type | 10%~100% stepless regulation | 7.5%~100% stepless regulation |
5%~100% stepless regulation |
|||||||||
| Startup Type | Y-Δ | |||||||||||
| Power supply | 380~415V/3N~/50Hz | |||||||||||
| Refrigerant | Type | R134a | ||||||||||
| Circuits NO | No. | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 4 | |
| Control type | Electronic expansion valve | |||||||||||
| Compressor | Type | Semi-hermetic dual-screw type | ||||||||||
| Qty | No. | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 4 | |
| Lubricant | Brand | EK05 | ||||||||||
| Charging | 30+30 | 30+30 | 30+30 | 30+30 | 30+30 | 30+30 | 30+30 | 30+30 | 30+30+30 | 30+30+30+30 | ||
| Fan | Type | Spiral axial fan | ||||||||||
| Qty | No. | 16 | 20 | 20 | 20 | 22 | 24 | 24 | 28 | 28 | 30 | |
| Total power | kW | 25.6 | 32 | 32 | 32 | 35.2 | 38.4 | 38.4 | 44.8 | 44.8 | 48 | |
| Air flow | ×104m3/h | 32 | 40 | 40 | 40 | 44 | 48 | 48 | 56 | 56 | 60 | |
| Air-Side Heat Exchanger |
Type | Fin type | ||||||||||
| FPI | 片/Inch | 16FPI | ||||||||||
| Water-side heat exchanger |
Type | Dry shell and tube type | ||||||||||
| Water flow | m3/h | 149.0 | 155.4 | 167.3 | 176.0 | 189.3 | 202.6 | 216.8 | 224.3 | 112.1+122.1 | 122.1+131.6 | |
| WPD | kPa | 56 | 61 | 56 | 70 | 55 | 80 | 90 | 71 | 56/48 | 48/61 | |
| Diameter of connected pipe |
inch | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 6+6 | 6+6 | |
| Rated current | A | 526 | 569 | 594 | 619 | 654 | 690 | 753 | 774 | 387+453 | 453+478 | |
| Maximum operating current |
A | 676 | 690 | 730 | 770 | 819 | 868 | 1010 | 1024 | 512+578 | 578+606 | |
| Maximum startup current | A | 1048 | 1055 | 1227 | 1267 | 1316 | 1316 | 1512 | 1519 | 1007+689 | 689+952 | |
| Unit dimensions |
Length | mm | 8900 | 10700 | 10700 | 10700 | 11600 | 12500 | 12500 | 14300 | 15350 | 16900 |
| Width | mm | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | |
| Height | mm | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | |
| Unit weight | Transportation | kg | 8233 | 8429 | 9437 | 9537 | 9521 | 10555 | 10875 | 11275 | 13426 | 14622 |
| Operation | kg | 8653 | 8849 | 9917 | 10017 | 10021 | 11055 | 11375 | 11875 | 14226 | 15442 | |
| Model | —B3E | EKAS093 | EKAS109 | EKAS126 | EKAS132 | EKAS146 | EKAS168 | EKAS180 | EKAS188 | EKAS202 | EKAS218 | |
| Nominal cooling capacity |
kW | 327.0 | 382.7 | 442.5 | 461.1 | 511.7 | 589.0 | 630.3 | 652.0 | 709.7 | 765.4 | |
| USRT | 93.0 | 108.8 | 125.8 | 131.1 | 145.5 | 167.5 | 179.2 | 185.4 | 201.8 | 217.6 | ||
| ×104 kcal/h | 28.1 | 32.9 | 38.1 | 39.7 | 44.0 | 50.7 | 54.2 | 56.1 | 61.0 | 65.8 | ||
| Cooling compressor power |
kW | 111.8 | 130.8 | 146.5 | 149.4 | 170.9 | 192.7 | 210.3 | 214.2 | 242.6 | 261.6 | |
| Control type | 20%~100% stepless regulation | 10%~100% stepless regulation | ||||||||||
| Startup Type | Y-Δ | |||||||||||
| Power supply | 380~415V/3N~/50Hz | |||||||||||
| Refrigerant | Type | R134a | ||||||||||
| Circuits NO | No. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Control type | Electronic expansion valve | |||||||||||
| Compressor | Type | Semi-hermetic dual-screw type | ||||||||||
| Qty | No. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Lubricant | Brand | EK05 | ||||||||||
| Charging | 19 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 19+30 | 30+30 | ||
| Fan | Type | Spiral axial fan | ||||||||||
| Qty | No. | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | 16 | |
| Total power | kW | 9.6 | 12.8 | 12.8 | 16 | 16 | 19.2 | 19.2 | 22.4 | 22.4 | 25.6 | |
| Air flow | ×104m3/h | 12 | 16 | 16 | 20 | 20 | 24 | 24 | 28 | 28 | 32 | |
| Air-Side Heat Exchanger |
Type | Fin type | ||||||||||
| FPI | 片/Inch | 16FPI | ||||||||||
| Water-side heat exchanger |
Type | Dry shell and tube type | ||||||||||
| Water flow | m3/h | 56.2 | 65.8 | 76.1 | 79.3 | 88.0 | 101.3 | 108.4 | 112.1 | 122.1 | 131.6 | |
| WPD | kPa | 38 | 44 | 48 | 36 | 34 | 47 | 54 | 56 | 48 | 61 | |
| Diameter of connected pipe |
inch | 8 | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Rated current | A | 214 | 240 | 265 | 285 | 310 | 345 | 377 | 387 | 453 | 478 | |
| Maximum operating current |
A | 275 | 303 | 338 | 345 | 385 | 434 | 505 | 512 | 578 | 606 | |
| Maximum startup current | A | 414 | 649 | 710 | 710 | 882 | 882 | 1007 | 1007 | 689 | 952 | |
| Unit dimensions |
Length | mm | 3750 | 4650 | 4650 | 5550 | 5550 | 6450 | 6450 | 7350 | 8000 | 8900 |
| Width | mm | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | |
| Height | mm | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | |
| Unit weight | Transportation | kg | 3380 | 4305 | 4315 | 5463 | 5723 | 5703 | 5803 | 6673 | 7374 | 8200 |
| Operation | kg | 3580 | 4505 | 4565 | 5766 | 6026 | 6053 | 6153 | 7093 | 7794 |
8620 |
|
