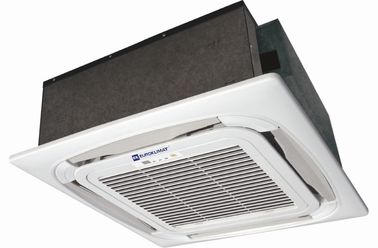

Ultra thin Chilled Water 4 Way Air Flow Cassette Fan Coil Unit Wide Angle

Ultra thin Chilled Water 4 Way Air Flow Cassette Fan Coil Unit Wide Angle

Ultra thin Chilled Water 4 Way Air Flow Cassette Fan Coil Unit Wide Angle

Product Details:

Place of Origin: China
Brand Name: EuroKlimat
Certification: AHRI ,CE,ISO9001,ISO14001,OHSAS18001
Model Number: EKCW-K

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Carton
Delivery Time: 10 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 15,000pcs per month
Detailed Product Description
Product Name: Cassette Fan Coil Unit Installation: Ceilling
Cooling Capacity(kW): 2.7-12.6 Heating Capacity(kW): 4.05-18.9
Air Flow(m3/h): 500-1900 Aluminum Fins: Shutter-type Hyperbolic And Hydrophilic Fins
Test Pressure (Mpa): 3.3





Ultrathin Chilled water 4 way air flow Cassette Fan Coil Unit


Specifciations



Model EKCW
300KT
EKCW
400KT
EKCW
500KT
EKCW
600KT
EKCW
800KT
EKCW
1000KT
EKCW
1200KT
EKCW
1400KT
air flow H m3/h 550 680 850 1020 1360 1700 2040 2380
M m3/h 500 550 740 850 1210 1360 1700 1900
L m3/h 450 500 660 740 980 1210 1360 1540
cooling capacity H W 2700 3600 4500 5400 7200 9000 10800 12600
heating capacity H W 4050 5400 6750 8100 10800 13500 16200 18900
Noise H dB(A) 39 41 43 45 46 48 50 51
Input power W 52 58 71 84 130 170 175 225
Current A 0.25 0.28 0.34 0.40 0.62 0.81 0.84 1.08
Motor Type Single-phase ball-bearing capacitive motor with a high precision and low operation sound
Power supply   220V~/50Hz
Protection grade   IP20
Insulation grade   B
Water flow m3/h 0.46 0.62 0.77 0.93 1.23 1.54 1.85 2.16
Water resistance kPa 25 30 15 20 30 35 44 45
Connecting pipe specification   Rc 3/4
Life of condensate water pump   External diameter of condensate water pipe: Φ26 mm; external diameter of external hose: Φ 16mm
Dimensions Master unit mm

582x582

x250

582x582

x250

705x705

x290

705x705

x290

832x832

x290

832x832

x290

832x832

x290

960x960

x290

Panel mm

680x680

x30

680x680

x30

830x830

x30

830x830

x30

980x980

x30

980x980

x30

980x980

x30

1140x11

40x30

Net weight kg 24 24 29 29 38 38 38 49.5



Note:
■ Working conditions for cooling: inlet air temperature - dry/wet bulb 27°C/19.5°C; temperature of inlet/outlet water - 7°C/12°C.
■ Working conditions for heating: inlet air temperature - dry bulb 21°C; inlet water temperature 60°C; water flow - equal to that
for cooling operation.
■ Rated air flow is measured under standard atmosphere using dry coils (dry bulb 20°C).
■ Sound pressure grade and sound level are measured in a semi-silent room as per GB/T 19232-2003.
■ H, M and L represent high, medium and low fan speed respectively.
■ All performance parameters in the above table are measure with a power supply of 220V~/50Hz.


1. Wide-Angle and Strong Circular Air Supply


The unit features elegant panel and edge design and can be flexibly installed. It provides wide-angle circular air with a strong and even current. Air is supplied to all corners of the room, making indoor space feels natural and comfortable.


2. Compact Design and Easy Installation


The unit features a compact design with a super-thin and streamlined front panel(30 mm thick), and can be installed inside a narrow space in the ceiling.


3. Vertical and Even Air Supply
I

t provides wide-angle circular air with a strong and even current. For rooms with high ceilings, the unit can also
quickly supply air to all corners, making air in the room immediately feels comfortable.


4.Scroll Fan with Low Operation Sound


Featuring aerodynamic principles, the fan has three spiral blades that are optimally placed to reduce air resistanceand operation sound.
