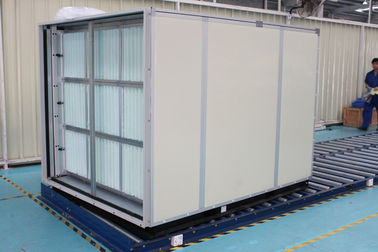

Super slim Ceiling Hanging Chilled Water Air Handling Units 1500-5000m3/h

Super slim Ceiling Hanging Chilled Water Air Handling Units 1500-5000m3/h

    • Super slim Ceiling Hanging Chilled Water Air Handling Units 1500-5000m3/h
    • Super slim Ceiling Hanging Chilled Water Air Handling Units 1500-5000m3/h
  • Super slim Ceiling Hanging Chilled Water Air Handling Units 1500-5000m3/h

    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: AHRI ,CE,ISO9001,ISO14001,OHSAS18001
    Model Number: EKSW-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: 15 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 5,000pcs per month
    Detailed Product Description

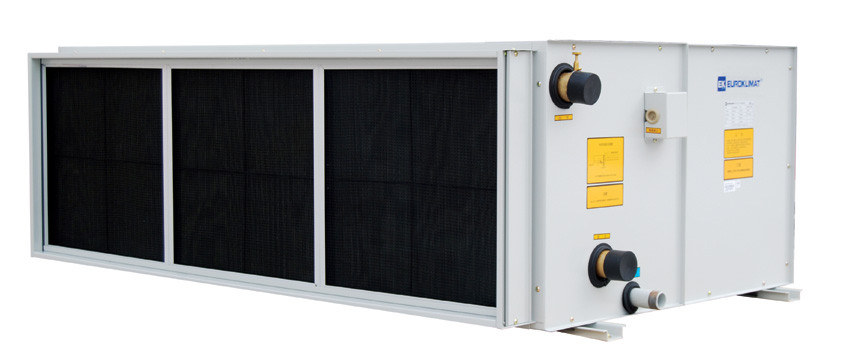

    Product Name: Super-slim Air Handling Units Installation: Ceiling Hang/floor Installation
    Cooling Capacity(kW): 6-84 Heating Capacity(kW): 11-87
    Air Flow(m3/h): 1500-5000 Aluminum Fins: Shutter-type Hyperbolic And Hydrophilic Fins
    Test Pressure (Mpa): 3.3 Coils Rows: 4/6





    Super-slim Compact Desgin Chilled Water Air Handling Units



    Specifciations





    Unit Model

    EKSW

    015D

    EKSW

    020D

    EKSW

    025D

    EKSW

    030D

    EKSW

    035D

    EKSW

    040D

    EKSW

    050D

    Nominal air flow (m3/h) 1500 2000 2500 3000 3500 4000 5000
    External static pressure (Pa) 70 100 100 120 120 150 150
    Nominal cooling capacity (kW) Four rows of coils (in air return condition) 6 10 12 16 18 23 29
    Four rows of coils (in fresh air condition)  19 27 31 40 47 57 70
    Six rows of coils (in air return condition)  10 15 17 22 26 31 37
    Six rows of coils (in fresh air condition) 25 34 39 49 61 70 84
    Nominal heating capacity (kW) Four rows of coils (in air return condition) 11 16 19 24 28 34 42
    Four rows of coils (in fresh air condition)  21 30 34 43 52 61 73
    Six rows of coils (in air return condition)  15 21 23 29 36 42 50
    Six rows of coils (in fresh air condition) 26 36 41 51 64 74 87
    Nominal input power (W) Four rows of coils  373 614 787 797 905 1248 1533
    Six rows of coils  397 653 823 845 1016 1362 1699
    Nominal input current (A) Four rows of coils  1.72 2.96 3.61 3.62 4.22 5.68 6.98
    Six rows of coils  1.81 3.01 3.78 3.96 5.1 6.29 7.86
    Water flow (m3/h) Cooling
    condition
    Air return condition

    1.01

    (1.78)

    1.77

    (2.57)

    2.40

    (3.36)

    3.13

    (4.18)

    3.09

    (4.58)

    3.91

    (5.36)

    5.32

    (7.06)

    Fresh air condition

    3.26

    (4.30)

    4.69

    (5.95)

    6.07

    (7.61)

    7.65

    (9.29)

    8.21

    (10.5)

    9.78

    (12.15)

    12.89

    (15.59)

    Heating
    condition
    Air return condition

    0.96

    (1.27)

    1.38

    (1.78)

    1.80

    (2.28)

    2.27

    (2.79)

    2.42

    (3.14)

    2.91

    (3.64)

    3.83

    (4.69)

    Fresh air condition

    1.85

    (2.30)

    2.57

    (3.14)

    3.26

    (3.98)

    4.07

    (4.84)

    4.47

    (5.52)

    5.28

    (6.36)

    6.83

    (8.10)

    Water resistance (kPa) Cooling
    condition
    Air return condition 5(14) 14(27) 24(54) 14(21) 13(44) 25(45) 40(75)
    Fresh air condition 39(77) 40(89) 46(96) 32(76) 36(79) 46(103) 74(113)
    Heating
    condition
    Air return condition 4(12) 12(24) 10(24) 9(12) 11(32) 19(30) 24(32)
    Fresh air condition 20(42) 26(49) 24(62) 26(56) 20(53) 31(68) 67(70)
    Coil Model High-quality air conditioner copper tubes are connected to
    hyperbolic aluminum plate-fins through mechanical expanding.
    Heat exchanger 12
    Working pressure (MPa)  1.6
    Inlet/outlet pipe connector size R1-1/2
    Condensed water pipe connector size R3/4
    Fan Type/material Centrifugal dual suction impeller with forward curved galvanized steel plate
    Transmission mode Joint transmission
    Air supply direction of the fan Downward horizontal
    Motor  Power supply  220V~/50Hz
    Model High precision low noise ball bearing single-phase capacitor-run motor
    Degree of protection IP20
    Insulation rank B
    Unit noise (dB(A)) HF 44.1 50.6 55.7 52.5 53.5 53.6 57.0
    MF 40.7 48.0 52.2 50.5 52.1 51.5 56.0
    LF 37.7 45.1 48.4 48.5 50.2 49.5 54.9
    Filter Model Primary nylon filter
    Thickness (mm) 21
    Box  Model The galvanized steel plate applies static spraying and the internal is
    attached with efficient insulation sound-proof PE material.
    Unit Outer Dimensions Length (mm) 750 910 1070 1220 1370 1520 1850
    Width (mm)  750 750 750 750 750 750 750
    Height (mm)  420 420 420 420 420 420 420
    Unit weight (kg) Four rows of coils  76 80 86 92 96 102 108
    Six rows of coils  79 84 90 96 101 107 113



    Note:
    ■ The preceding parameters apply to the standard model. EK provides customized design to meet special requirements.
    ■ Nominal air return cooling condition: 27°C (dry bulb)/19.5°C (wet bulb). Nominal fresh air cooling condition: 34°C (dry bulb)/28°C (wet bulb). Nominal cooling
    water inlet/outlet temperature: inlet 7°C; outlet 12°C.
    ■ Nominal air return heating condition: 21°C (dry bulb). Nominal fresh air heating condition: 0°C (dry bulb). Nominal heating water inlet/outlet temperature: inlet
    60°C; outlet 50°C.
    ■ The unit weight listed in the table is net weight. The operating weight increases by about 20%.
    ■ The noise values in the preceding table are measured at a distance of 1 m from the unit in a state certified standard semi-anechoic room according to the GBT
    9068-1988 standard.
    ■ If the external total pressure value of the unit used in model selection is large, the air flow will be large, leading to noise and water spray. Therefore, carefully
    determine the air duct resistance.
    ■ The power and current in the table are measured when the unit is in high rotation speed under rated air flow and air pressure.




    Pleasant appearance:



    Highly intensive galvanized steel plates with orange-peel static powder spraying are used for pleasant appearance and efficient erosion prevention.



    Low noise:



    Comprehensive noise reduction design is used. High-quality low-noise motors and low-rotation performing fans are selected. In addition, the fan motor incorporates overall vibration reduction design and runs at a low noise. A horizontal unit adopts flexible connection by using quality canvas, which efficiently isolates vibration from fans and reduces noises generated by air flows. With the industry-leading noise processing technology, this unit can fully meet customer requirements for low noise. The horizontal super-slim unit reduces the noise to as low as 44.1 dB(A) and is recommended for noise-sensitive scenarios such as the hall of a five-star hotel.



    Clean and environment-friendly



    A primary nylon mesh filter is preset at the air inlet.Plate filters can be added upon customer request. Multiple types of filters and sterilizers such as aluminum filter, electric purifier, and photo catalyst are available.



    Efficient fan:



    An efficient forward curved fan is used. The fan features a large air flow,
    low noise, and stable and reliable performance.



    Three-grade regulation:



    The horizontal super-slim unit supports three-grade regulation,meeting requirements for different air flows.



    Prevention of cold bridge:



    New PU materials are used for insulation, delivering excellent insulation and sound absorption performance. These materials do not absorb water, thereby effectively preventing cold bridge.



    Prevention of condensed water:



    The area of the water tray in the new-generation horizontal unit increases by one time, eliminating the risks of condensed water leakage.



    Construction party



    Built-in unit terminal box and convenient external cable connection
    Wide maintenance manhole for easy repair
    Optional simple accessories such as temperature control and pressure difference alarm
    Installation is easy. Flanges are set at both air inlet and outlet for easy duct connection.
    The unit can be installed on floor or ceiling.
