Capacity Continuous Adjustment Air Cooled Screw Chiller With Chiller Manage System

Capacity Continuous Adjustment Air Cooled Screw Chiller With Chiller Manage System

    • Capacity Continuous Adjustment Air Cooled Screw Chiller With Chiller Manage System
  • Capacity Continuous Adjustment Air Cooled Screw Chiller With Chiller Manage System

    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Model Number: EKAS380

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: 40 working days after received your payment
    Payment Terms: L/C, T/T
    Supply Ability: 100 pcs per month
    Contact Now
    Detailed Product Description
    Cooling Capacity(kW): 1367.3 Heating Capacity(kW): 388.8
    Cooling Power Input(kW): 387.3 Heating Power Input(kW): 383.8
    Power Supply: 380-415V/3~/50Hz Compressor Type: Semi-hermelic Dual-screw Iype
    High Light:

    residential heat pump

    ,

    industrial water chiller units

    EK keeps looking for valuable distributors and partners around international markets…

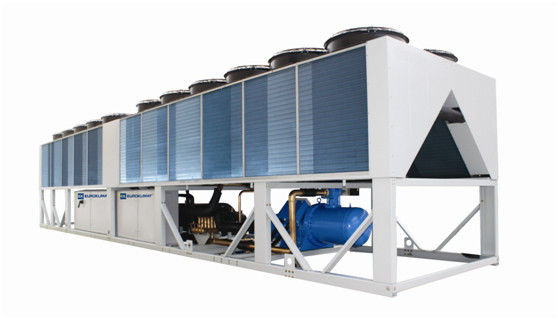

    Capacity Continuous Adjustment Air Cooled Screw Chiller With Chiller Manage System



    The unit adopts a brand new economizer circulation design.
    The electronic expansion valve implements precision control,increasing the over-cooling degree of the unit, and greatly improving the cooling capacity and cooling efficiency of the unit.



    General Specifications



    Environmental Friendly-EKAS is an air cooled screw chiller which use dual screw compressor with R134a refrigerant



    High Efficiency-The “Apollo”/“Apollo+” stands for high efficiency/ extremely high efficiency on partial and full load operation , thanks to dual screw compressor , sub-cooling design , M shape condenser ,economizer , shell and tube evaporator ,electronic expansion valve and patent aerofoil aluminum fan .



    Capacity Continuous Adjustment -With intelligent controller , EK chiller performs a prompt adjustment according to system load to ensure the precisely chilled water temperature . What’s more , it will unload automatically at extremely high ambient temperature to protect compressor.



    10.1” Touch Screen -is directly connected to the microprocessor , providing monitoring history data recording ,safety protection ,and more convenient operation .



    Widely Applications -EKAS is the idea solution for commercial building & industrial applications that required high performance ,continuous operation , lower operation and maintenance cost .



    BMS (Optional)-EK provide an RS485 standard communication interface , which is more convenient to joint with building management system . Standard protocol includes BacNet ,Modbus and Lonwork .



    Chiller Manage System (Optional)- EK provide intelligent CMS for centralized control on several air cooled screw chillers to balance each unit running time ,and perform automatically switchover on a fault unit , ensuring the whole system stable running & energy saving .





    Model

    EKAS280

    EKAS300

    EKAS320

    EKAS340

    EKAS380

    EKAS400

    Cooling capacity

    kW

    1005.7

    1097.6

    1168.3

    1239

    1367.3

    1439.1

    USRT

    286

    312.1

    332.2

    352.3

    388.8

    409.2

    ×104 kcal/h

    86.5

    94.4

    100.5

    106.6

    117.6

    123.8

    Heating capacity

    kW

    957

    1045.2

    1111.8

    1178.5

    1297.8

    1360.5

    USRT

    272.1

    297.2

    316.1

    335.1

    369

    386.8

    ×104 kcal/h

    82.3

    89.9

    95.6

    101.3

    111.6

    117

    Cooling power input

    kW

    291.8

    310.4

    331.6

    352.9

    387.3

    404.7

    Heating power input

    kW

    283.7

    313.7

    330.7

    347.8

    383.8

    403.2

    COP

    3.45

    3.54

    3.52

    3.51

    3.53

    3.56

    Capacity modulation

    12.5%~100% stepless

    Startup type

    Y-Δ

    Power supply

    380V/3~/50Hz

    Refrigerant

    Type



    R134a

    Refrigerant circuits

    2

    2

    2

    2

    2

    2

    Control stratage

    E-EXV

    Compressor

    type



    Semi-hermetic dual screw compressor

    Qua.



    2

    2

    2

    2

    2

    2

    Lubricating oil

    code



    EK02

    charge



    25+25

    25+25

    25+25

    25+25

    25+25

    25+25

    Fan

    type



    Axial

    Qua.

    No.

    20

    24

    24

    24

    28

    32

    air flow

    ×104m3/h

    40

    48

    48

    48

    56

    64

    Air side heat exchanger

    type



    Coil

    density



    16FPI

    Water side heat exchanger

    type



    shell & tube

    cooling flow

    m3/h

    173.0

    188.8

    200.9

    213.1

    235.2

    247.5

    pressure drop

    kPa

    62

    77

    77

    86

    86

    64

    heating flow

    m3/h

    164.6

    179.8

    191.2

    202.7

    223.2

    234.0

    connection

    inch

    8

    8

    8

    8

    8



    Rated current

    A

    510

    557

    579

    601

    678

    721

    Startup current

    A

    660

    660

    660

    749

    882

    882

    Max.Startup current

    A

    733

    757

    824

    999

    999

    1109

    Dimensions

    length

    mm

    11600

    12500

    12500

    12500

    14300

    16100

    width

    mm

    2260

    2260

    2260

    2260

    2260

    2260

    height

    mm

    2525

    2525

    2525

    2525

    2525

    2525

    Chiller shipping weight

    kg

    10846

    11399

    11449

    11459

    12857

    14201

    Chiller operating weight

    kg

    11326

    11879

    11929

    11959

    13357

    14801

    Heatpump shipping weight

    kg

    11094

    11647

    11697

    11707

    13105

    14449

    Heatpump operating weight

    kg

    11574

    12127

    12177

    12207

    13605

    15049




    Standard Accessories:



    Water Y filter

    Spring vibration isolator

    Water flow Switch

    Evaporator water side victaulic





    Options (on request)



    Low-ambient temperature type

    Annual heat pump type

    Anti-erosive aluminum fin

    Compressor silencer box

    Soft start

    Remote touch screen controller

    CMS(Chiller Manage System)

    Monitoring software

    Flange connection

    Gateway for Modbus, Lonworks, and BACnet

    EC fan motor , Higher ESP fan motor

    Condenser guard grille





    Controller:



    Partial running information:

    Partial alarm information:

    Unit running status

    Over/under voltage protection

    Unit capacity

    Phase sequence protection

    Compressor running status

    Comp high/low pressure protection

    Water pump running status

    Comp overload protection

    E-EXV running status

    Fan motor overload protection

    Inlet/outlet water temperature

    Oil filter block protection

    Comp suction/discharge pressure

    High discharge temperature protection

    Comp suction/discharge temperature

    Anti freeze protection

    Oil pressure/temperature

    Pressure transducer/Temperature sensor trouble





    Partial function:

    Factory/Service/User password

    POST (Power on self test)

    7 days timer

    Inlet/outlet water temperature control

    Outlet water temperature setting

    Unit running auto/manual control

    Comp delay start

    Comp start time setting

    Partial start

    Comp energy management
