|Place of Origin:||China|
|Certification:||ISO9001, ISO14001, OHSAS18001, CRAA, CQC|
|Minimum Order Quantity:||1 pcs|
|Delivery Time:||40 working days after received your payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||60pcs per month|
|Cooling Capacity(kW):||1419||Heating Capacity(kW):||1978|
|Cooling Power Input(kW):||245||Heating Power Input(kW):||315|
|Power Supply:||380V/3~/50Hz||Compressor Type:||Semi-hermelic Dual-screw Compressor|

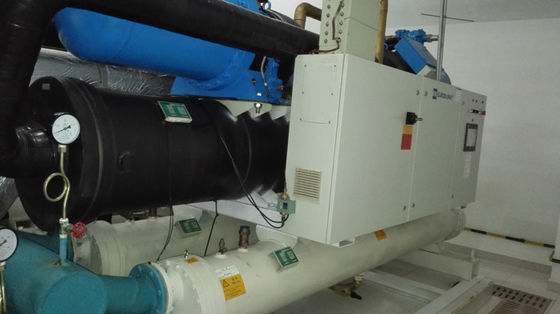

1419KW R134A Flooded Water Cooled Screw Chiller COP 5.8 Energy Saving
EK keeps looking for valuable distributors and partners around international markets…
■ The heat exchanger for EKAS screw-type air-cooled chilled water (heat pump) unit adopts patent refrigerant distribution design and passes strict certification of EU and US ASME.
The internal heat exchange pipe uses high-efficiency internal threaded heat exchange copper tube to strengthen thermal conduction at the water side and refrigerant side, maximizing thermal conduction efficiency, reducing energy consumption of the unit, and reducing customer running expenses.
■ The standard piping mode provided by the heat exchanger is trough coupling connection (with short tube), facilitating field installation. Each evaporator and condenser is equipped with independent air exhaust and water drainage devices.
■ The heat exchanger facilitates compressor oil return design for simple oil return without an oil pump, eliminating the risks of a frozen heat exchange pipe. The heat exchanger requires a refrigerant filling amount that is only 1/3 compared with an ordinary heat exchanger, and does not leak, making it
environment-friendly and reliable.
Environmental Friendly-EKSC is an air cooled screw chiller which use dual screw compressor with R134a refrigerant
High Efficiency-EK Flooded Water cooled Screw chiller has a high efficiency on partial and full load operation , thanks to dual screw compressor , Flooded shell and tube evaporator ,electronic expansion valve and patent aerofoil aluminum fan .
Capacity Continuous Adjustment -With intelligent controller , EK chiller performs a prompt adjustment according to system load to ensure the precisely chilled water temperature .
10.1” Touch Screen -is directly connected to the microprocessor , providing monitoring history data recording ,safety protection ,and more convenient operation .
Widely Applications -EKSC is the idea solution for commercial building & industrial applications that required high performance ,continuous operation , lower operation and maintenance cost .
BMS (Optional)-EK provide an RS485 standard communication interface , which is more convenient to joint with building management system . Standard protocol includes BacNet ,Modbus and Lonwork .
Chiller Manage System (Optional)- EK provide intelligent CMS for centralized control on several air cooled screw chillers to balance each unit running time ,and perform automatically switchover on a fault unit , ensuring the whole system stable running & energy saving .
