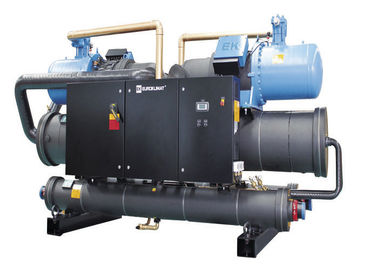

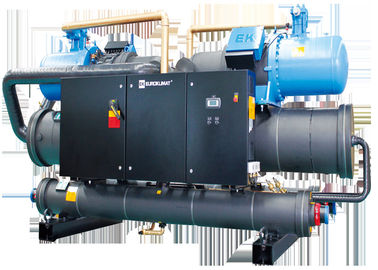

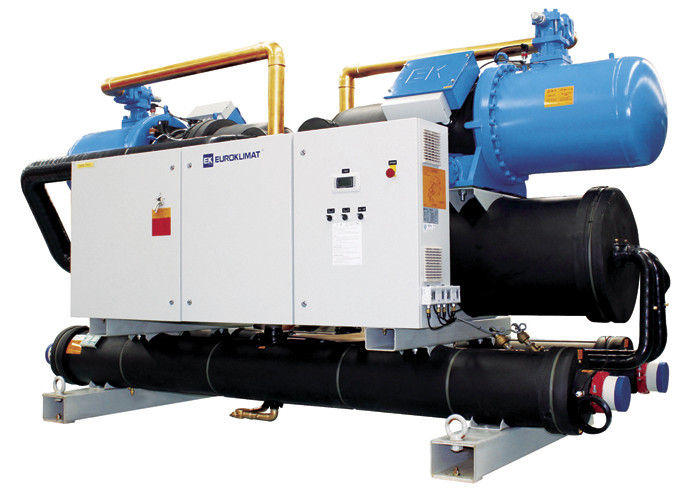

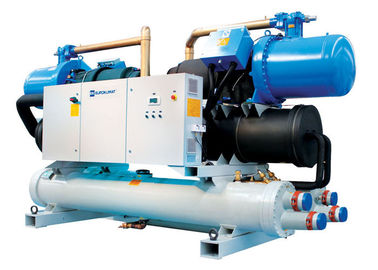

High Efficiency PID Control Shell Tube Water Cooled Screw Chiller 3770x1200x1490

High Efficiency PID Control Shell Tube Water Cooled Screw Chiller 3770x1200x1490

    • High Efficiency PID Control Shell Tube Water Cooled Screw Chiller 3770x1200x1490
    • High Efficiency PID Control Shell Tube Water Cooled Screw Chiller 3770x1200x1490
    • High Efficiency PID Control Shell Tube Water Cooled Screw Chiller 3770x1200x1490
    • High Efficiency PID Control Shell Tube Water Cooled Screw Chiller 3770x1200x1490
  • High Efficiency PID Control Shell Tube Water Cooled Screw Chiller 3770x1200x1490

    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: ARI ,CE,ISO9001,ISO14001,OHSAS18001,CRAA,CQC
    Model Number: EKSC

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: Negotiation
    Packaging Details: Plywood
    Delivery Time: 40 working days after received your payment
    Payment Terms: T/T or L/C
    Supply Ability: 60pcs per month
    Detailed Product Description
    Cooling Capacity(kW): 304.5--1530.6 KW Heating Capacity(kW): 364.-- 1779.7 KW
    Cooling Power Input(kW): 55.3-252 KW Heating Power Input(kW): 69.9--317.5 KW
    Refrigerant: R134a Power Supply: 380V/3~/50Hz
    Compressor Type: Semi-closed Double-screw Compressor Total Heat Recovery COP: 8.52-9.33

    EK keeps looking for valuable distributors and partners around international markets…



    EKSC Series XE High-efficiency Screwtype Water-cooled Chillers



    Specifications:



    Model

    EKSC090

    EKSC110

    EKSC125

    EKSC135

    EKSC145

    EKSC160

    EKSC170

    Cooling

    Cooling capacity

    U.S.RT

    86.6

    106.9

    125.1

    134.4

    144.6

    158.6

    168.0

    kW

    304.5

    376

    440.1

    472.8

    508.7

    557.9

    590.8

    x104kcal/h

    26.2

    32.3

    37.8

    40.7

    43.7

    48.0

    50.8

    Input power

    kW

    55.3

    67.3

    78.4

    83.6

    86

    93.8

    101.2

    COP

    kW/kW

    5.51

    5.59

    5.61

    5.66

    5.92

    5.95

    5.84

    Chilled water flow

    m3/h

    52.4

    64.7

    75.7

    81.3

    87.5

    96.0

    101.6

    Pressure drop of chilled water

    kPa

    75

    85

    77

    85

    85

    85

    83

    Cooling water flow

    m3/h

    61.9

    76.2

    89.2

    95.7

    102.3

    112.1

    119.0

    Pressure drop of cooling water

    kPa

    67

    62

    72

    75

    69

    71

    72

    Heating*

    Heating capacity

    U.S.RT

    103.5

    127.4

    148.6

    159.3

    171.0

    187.4

    198.5

    kW

    364.2

    448.2

    522.7

    560.2

    601.5

    659.1

    698.0

    x104kcal/h

    31.3

    38.5

    45.0

    48.2

    51.7

    56.7

    60.0

    Input power

    kW

    69.9

    85.0

    99.1

    105.5

    108.6

    118.3

    127.8

    COP

    kW/kW

    5.21

    5.27

    5.28

    5.31

    5.54

    5.57

    5.46

    Hot water flow rate

    m3/h

    62.6

    77.1

    89.9

    96.4

    103.5

    113.4

    120.1

    Hot water pressure drop

    kPa

    69

    64

    73

    76

    71

    73

    73

    Water source flow rate

    m3/h

    50.6

    62.5

    72.9

    78.2

    84.8

    93.0

    98.1

    Water source pressure drop

    kPa

    70

    79

    71

    78

    80

    80

    77

    Cooling + total heat recovery*

    Cooling capacity

    U.S.RT

    74.1

    91.5

    107.1

    115.1

    123.8

    135.8

    143.8

    kW

    260.7

    321.9

    376.8

    404.7

    435.5

    477.7

    505.9

    x104kcal/h

    22.4

    27.7

    32.4

    34.8

    37.5

    41.1

    43.5

    Heat recovery capacity

    U.S.RT

    93.8

    115.5

    135.1

    144.9

    154.5

    169.2

    179.9

    kW

    330.0

    406.2

    475.1

    509.6

    543.3

    595.2

    632.7

    x104kcal/h

    28.4

    34.9

    40.9

    43.8

    46.7

    51.2

    54.4

    Input power

    kW

    69.3

    84.3

    98.3

    104.9

    107.8

    117.5

    126.9

    Cooling COP

    kW/kW

    3.76

    3.82

    3.83

    3.86

    4.04

    4.07

    3.99

    Heat recovery COP

    kW/kW

    4.76

    4.82

    4.83

    4.86

    5.04

    5.07

    4.99

    Total COP

    kW/kW

    8.52

    8.63

    8.67

    8.72

    9.08

    9.13

    8.98

    Chilled water flow

    m3/h

    52.4

    64.7

    75.7

    81.3

    87.5

    96.0

    101.6

    Pressure drop of chilled water

    kPa

    75

    85

    77

    85

    85

    85

    83

    Hot water flow rate

    m3/h

    56.8

    69.9

    81.7

    87.7

    93.4

    102.4

    108.8

    Hot water pressure drop

    kPa

    57

    53

    61

    63

    58

    60

    61

    Compressor

    Type



    Semi-closed double-screw compressor

    Qty.



    1

    1

    1

    1

    1

    1

    1

    Startup type



    Y-Δ

    Capacity modulation

    %

    25%-100% stepless modulation

    Power supply



    380V/3~/50Hz

    Condenser

    Type



    Water-cooled shell-tube type

    Qty.



    1

    1

    1

    1

    1

    1

    1

    Evaporator

    Type



    Dry shell-tube type

    Qty.



    1

    1

    1

    1

    1

    1

    1

    Refrigerant type



    R134a

    Lubricant

    Code



    EK02

    Filling

    L

    13x1

    13x1

    19x1

    19x1

    23x1

    23x1

    23x1

    Temperature control



    PID control over water temperature

    Outer diameter of chilled water inlet/outlet pipe

    φ(mm)

    139.7

    139.7

    168.3

    168.3

    168.3

    168.3

    168.3

    Outer diameter of cooling water inlet/outlet pipe

    φ(mm)

    114.3

    114.3

    114.3

    114.3

    139.7

    139.7

    139.7

    Heat-insulation material



    PID control over water temperature

    Weight of a single indoor unit

    kg

    1850

    1870

    2240

    2260

    2830

    2860

    3080

    Operating weight

    kg

    2090

    2110

    2640

    2660

    3240

    3260

    3490

    Rated current (cooling)

    A

    95

    115

    133

    143

    147

    160

    172

    Rated current (heating*)

    A

    120

    146

    169

    180

    186

    202

    218

    Rated current (cooling + heat recovery*)

    A

    119

    145

    167

    179

    184

    201

    217

    Startup current

    A

    287

    343

    545

    545

    660

    660

    749

    Max. startup current (cooling)

    A

    287

    343

    545

    545

    660

    660

    749

    Max. startup current (heating*)

    A

    287

    343

    545

    545

    660

    660

    749

    L x W x H

    mm

    3770x1200x1490

    3840x1330x1660

    3840x1500x1670







    Model

    EKSC185

    EKSC195

    EKSC205

    EKSC220

    EKSC235

    EKSC250

    EKSC270

    Cooling

    Cooling capacity

    U.S.RT

    184.1

    193.7

    204.0

    217.6

    232.0

    250.3

    268.9

    kW

    647.5

    681.3

    717.6

    765.3

    816.1

    880.2

    945.6

    x104kcal/h

    55.7

    58.6

    61.7

    65.8

    70.2

    75.7

    81.3

    Input power

    kW

    107.4

    113.3

    118.4

    126

    145.7

    156.8

    167.2

    COP

    kW/kW

    6.03

    6.01

    6.06

    6.07

    5.60

    5.61

    5.66

    Chilled water flow

    m3/h

    111.4

    117.2

    123.4

    131.6

    140.4

    151.4

    162.6

    Pressure drop of chilled water

    kPa

    85

    70

    70

    65

    71

    73

    65

    Cooling water flow

    m3/h

    129.8

    136.7

    143.8

    153.3

    165.4

    178.4

    191.4

    Pressure drop of cooling water

    kPa

    72

    70

    67

    62

    69

    71

    75

    Heating*

    Heating capacity

    U.S.RT

    217.3

    227.6

    239.4

    254.4

    276.1

    297.2

    318.5

    kW

    764.1

    800.6

    842.0

    894.7

    970.9

    1045.2

    1120.3

    x104kcal/h

    65.7

    68.9

    72.4

    76.9

    83.5

    89.9

    96.3

    Input power

    kW

    135.6

    143.0

    149.6

    159.8

    183.9

    198.0

    211.1

    COP

    kW/kW

    5.63

    5.60

    5.63

    5.60

    5.28

    5.28

    5.31

    Hot water flow rate

    m3/h

    131.4

    137.7

    144.8

    153.9

    167.0

    179.8

    192.7

    Hot water pressure drop

    kPa

    74

    71

    68

    63

    70

    72

    76

    Water source flow rate

    m3/h

    108.1

    113.1

    119.1

    126.4

    135.4

    145.7

    156.4

    Water source pressure drop

    kPa

    80

    65

    65

    60

    66

    67

    60

    Cooling + total heat recovery*

    Cooling capacity

    U.S.RT

    157.6

    166.0

    174.7

    185.7

    198.7

    214.3

    230.2

    kW

    554.4

    583.7

    614.4

    653.2

    698.7

    753.6

    809.5

    x104kcal/h

    47.7

    50.2

    52.8

    56.2

    60.1

    64.8

    69.6

    Heat recovery capacity

    U.S.RT

    195.9

    206.3

    216.9

    230.3

    250.6

    270.1

    289.7

    kW

    689.0

    725.7

    762.8

    810.1

    881.3

    950.1

    1019.0

    x104kcal/h

    59.3

    62.4

    65.6

    69.7

    75.8

    81.7

    87.6

    Input power

    kW

    134.6

    142.0

    148.4

    156.9

    182.6

    196.5

    209.5

    Cooling COP

    kW/kW

    4.12

    4.11

    4.14

    4.16

    3.83

    3.84

    3.86

    Heat recovery COP

    kW/kW

    5.12

    5.11

    5.14

    5.16

    4.83

    4.84

    4.86

    Total COP

    kW/kW

    9.24

    9.22

    9.28

    9.33

    8.65

    8.67

    8.73

    Chilled water flow

    m3/h

    111.4

    117.2

    123.4

    131.6

    140.4

    151.4

    162.6

    Pressure drop of chilled water

    kPa

    85

    70

    70

    65

    71

    73

    65

    Hot water flow rate

    m3/h

    118.5

    124.8

    131.2

    139.3

    151.6

    163.4

    175.3

    Hot water pressure drop

    kPa

    60

    59

    56

    52

    58

    60

    63

    Compressor

    Type



    Semi-closed double-screw compressor

    Qty.



    1

    1

    1

    1

    2

    2

    2

    Startup type



    Y-Δ

    Capacity modulation

    %

    25%-100% stepless modulation

    12.5%-100% stepless modulation

    Power supply



    380V/3~/50Hz

    Condenser

    Type



    Water-cooled shell-tube type

    Qty.



    1

    1

    1

    1

    2

    2

    2

    Evaporator

    Type



    Dry shell-tube type

    Qty.



    1

    1

    1

    1

    1

    1

    1

    Refrigerant type



    R134a

    Lubricant

    Code



    EK02

    Filling

    L

    23x1

    23x1

    23x1

    25x1

    13+19

    19x2

    19x2

    Temperature control



    PID control over water temperature

    Outer diameter of chilled water inlet/outlet pipe

    φ(mm)

    168.3

    219.1

    219.1

    219.1

    219.1

    219.1

    219.1

    Outer diameter of cooling water inlet/outlet pipe

    φ(mm)

    139.7

    139.7

    139.7

    168.3

    114.3

    114.3

    114.3

    Heat-insulation material



    PID control over water temperature

    Weight of a single indoor unit

    kg

    3290

    3540

    3460

    3740

    3740

    3970

    4010

    Operating weight

    kg

    3690

    4140

    4160

    4340

    4240

    4580

    4620

    Rated current (cooling)

    A

    184

    193

    203

    216

    249

    268

    285

    Rated current (heating*)

    A

    232

    244

    255

    276

    314

    338

    361

    Rated current (cooling + heat recovery*)

    A

    230

    242

    253

    264

    312

    336

    357

    Startup current

    A

    749

    749

    749

    850

    343

    545

    545

    Max. startup current (cooling)

    A

    749

    749

    749

    850

    467

    679

    688

    Max. startup current (heating*)

    A

    749

    749

    749

    850

    500

    714

    725

    L x W x H

    mm

    3870x1500x1760

    3880x1520x1740

    4480x1500x1690

    3930x1520x2110

    3920x1520x2110






    Model

    EKSC290

    EKSC320

    EKSC340

    EKSC370

    EKSC390

    EKSC410

    EKSC440

    Cooling

    Cooling capacity

    U.S.RT

    289.3

    317.3

    338.8

    368.2

    387.4

    408.1

    435.2

    kW

    1017.4

    1115.8

    1191.5

    1295

    1362.6

    1435.2

    1530.6

    x104kcal/h

    87.5

    96.0

    102.5

    111.4

    117.2

    123.4

    131.6

    Input power

    kW

    172

    187.6

    204

    214.8

    226.6

    236.8

    252

    COP

    kW/kW

    5.92

    5.95

    5.84

    6.03

    6.01

    6.06

    6.07

    Chilled water flow

    m3/h

    175.0

    191.9

    204.9

    222.7

    234.4

    246.9

    263.3

    Pressure drop of chilled water

    kPa

    65

    65

    70

    70

    69

    71

    71

    Cooling water flow

    m3/h

    204.6

    224.2

    240.0

    259.7

    273.3

    287.6

    306.6

    Pressure drop of cooling water

    kPa

    67

    72

    72

    67

    67

    67

    67

    Heating*

    Heating capacity

    U.S.RT

    342.1

    374.8

    400.3

    434.5

    455.2

    478.8

    506.0

    kW

    1203.1

    1318.2

    1407.7

    1528.1

    1601.1

    1684.0

    1779.7

    x104kcal/h

    103.5

    113.4

    121.1

    131.4

    137.7

    144.8

    153.1

    Input power

    kW

    217.2

    236.8

    257.6

    271.3

    286.3

    299.0

    317.5

    COP

    kW/kW

    5.54

    5.57

    5.46

    5.63

    5.59

    5.63

    5.60

    Hot water flow rate

    m3/h

    206.9

    226.7

    242.1

    262.8

    275.4

    289.6

    306.1

    Hot water pressure drop

    kPa

    69

    74

    73

    69

    68

    68

    67

    Water source flow rate

    m3/h

    169.6

    186.0

    197.8

    216.2

    226.1

    238.2

    251.5

    Water source pressure drop

    kPa

    61

    61

    65

    66

    64

    66

    64

    Cooling + total heat recovery*

    Cooling capacity

    U.S.RT

    247.6

    271.6

    290.0

    315.3

    331.9

    349.4

    369.4

    kW

    871.0

    955.3

    1020.1

    1108.8

    1167.2

    1228.7

    1299.1

    x104kcal/h

    74.9

    82.2

    87.7

    95.4

    100.4

    105.7

    111.7

    Heat recovery capacity

    U.S.RT

    308.9

    338.5

    362.7

    391.8

    412.6

    433.8

    458.0

    kW

    1086.5

    1190.5

    1275.7

    1378.1

    1451.3

    1525.6

    1610.9

    x104kcal/h

    93.4

    102.4

    109.7

    118.5

    124.8

    131.2

    138.5

    Input power

    kW

    215.5

    235.2

    255.6

    269.3

    284.0

    296.8

    311.8

    Cooling COP

    kW/kW

    4.04

    4.06

    3.99

    4.12

    4.11

    4.14

    4.17

    Heat recovery COP

    kW/kW

    5.04

    5.06

    4.99

    5.12

    5.11

    5.14

    5.17

    Total COP

    kW/kW

    9.08

    9.12

    8.98

    9.24

    9.22

    9.28

    9.33

    Chilled water flow

    m3/h

    175.0

    191.9

    204.9

    222.7

    234.4

    246.9

    263.3

    Pressure drop of chilled water

    kPa

    65

    65

    70

    70

    69

    71

    71

    Hot water flow rate

    m3/h

    186.9

    204.8

    219.4

    237.0

    249.6

    262.4

    277.1

    Hot water pressure drop

    kPa

    56

    61

    61

    56

    56

    56

    55

    Compressor

    Type



    Semi-closed double-screw compressor

    Qty.



    2

    2

    2

    2

    2

    2

    2

    Startup type



    Y-Δ

    Capacity modulation

    %

    12.5%-100% stepless modulation

    Power supply



    380V/3~/50Hz

    Condenser

    Type



    Water-cooled shell-tube type

    Qty.



    2

    2

    2

    2

    2

    2

    2

    Evaporator

    Type



    Dry shell-tube type

    Qty.



    1

    1

    1

    2

    2

    2

    2

    Refrigerant type



    R134a

    Lubricant

    Code



    EK02

    Filling

    L

    23x2

    23x2

    23x2

    23x2

    23x2

    23x2

    25x2

    Temperature control



    PID control over water temperature

    Outer diameter of chilled water inlet/outlet pipe

    φ(mm)

    219.1

    219.1

    219.1

    273

    273

    273

    273

    Outer diameter of cooling water inlet/outlet pipe

    φ(mm)

    139.7

    139.7

    139.7

    139.7

    139.7

    139.7

    168.3

    Heat-insulation material



    PID control over water temperature

    Weight of a single indoor unit

    kg

    4690

    4830

    5200

    5560

    6000

    6040

    6240

    Operating weight

    kg

    5410

    5580

    6020

    6360

    7190

    7230

    7430

    Rated current (cooling)

    A

    294

    321

    348

    366

    387

    404

    427

    Rated current (heating*)

    A

    371

    405

    440

    463

    489

    511

    548

    Rated current (cooling + heat recovery*)

    A

    368

    401

    436

    460

    485

    507

    525

    Startup current

    A

    660

    660

    749

    749

    749

    749

    850

    Max. startup current (cooling)

    A

    807

    820

    923

    932

    943

    951

    1064

    Max. startup current (heating*)

    A

    845

    863

    969

    980

    993

    1004

    1124

    L x W x H

    mm

    4200x1560x2220

    4500x1560x2220

    4490x1560x2230

    3880x2370x2300

    3880x2370x2380

    4480x2370x2420







    Description:

    EKSC series XE high-efficiency screw-type watercooled chillers feature a leading-edge total heat recovery and screw uni t design, use R134a environment-friendly refrigerant, inherit EK air conditioning innovations over 40 years and integrate 13 patents. The EER reaches Class A by European standard, and the TCO is the lowest in the industry. Equipped with a compact and reliable structure and a lead-edge control system, the units best applies to

    places have many buildings and require central air conditioning and hot water systems, such as highrank hotels, office buildings, schools, hospitals, and factories.





    Applications:



    Business Organizations

    supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

    Financial Organizations

    Banks, negotiable securities, funds, insurance companies, pawnshops;

    Non-profit Organizations: Telecommunications, post offices, hospital, schools;

    Public Places

    subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

    Entertainments

    Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course









    Competitive Advantage:



    1.R134a High-efficiency Double Screw Compressor with High Efficiency and Low Noise

    2.High heat exchange efficiency with European patented heat exchanger

    3. Precise Control, Reliable Operation

    4. Name brand electronic expansion valve ensuring precise control

    5. Best integration and all-round energy saving

    6. Compact Structure, Safe and Convenient

    7. R134a Environment-friendly and Energy-saving Refrigerant

    8. Smart Control,Information Display,User Interface ,Centralized control

    Features of a heat recovery system:

    1.Free hot water, energy saving and environment friendly

    2.Higher EER with total heat recovery technology



    Contact Details
    Guangdong EuroKlimat Air-Conditioning & Refrigeration Co., Ltd

    Contact Person: Mr. LENG

    Tel: 86-0769-83660888-8265

    Fax: 86-0769-83622528

    Send your inquiry directly to us (0 / 3000)
