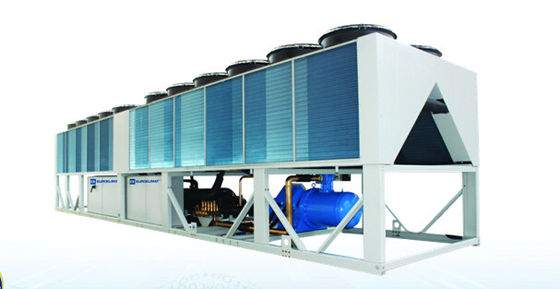

Large Capacity R407C Air Cooled Screw Chiller Heat Pump Units 284.1-1639.7KW

Large Capacity R407C Air Cooled Screw Chiller Heat Pump Units 284.1-1639.7KW

    • Large Capacity R407C Air Cooled Screw Chiller Heat Pump Units 284.1-1639.7KW
    • Large Capacity R407C Air Cooled Screw Chiller Heat Pump Units 284.1-1639.7KW
  • Large Capacity R407C Air Cooled Screw Chiller Heat Pump Units 284.1-1639.7KW

    Product Details:

    Place of Origin: China
    Brand Name: EuroKlimat
    Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
    Model Number: EKAS085~EKAS470

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: 40 working days after received your payment
    Supply Ability: 10 pcs per month
    Contact Now
    Detailed Product Description
    Cooling Capacity(kW): 284.1-1639.7KW Heating Capacity(kW): 322.7-1677.3KW
    Cooling Power Input(kW): 93.1-454.8KW Heating Power Input(kW): 95.8-464.8KW
    Refrigerant: R407C Compressor Type: Semi-closed Double Screw Type
    Power Supply: 380V/3~/50Hz Capacity Modulation: 12.5%~100% Stepless Modulation

    EK keeps looking for valuable distributors and partners around international markets…



    Screw-type air-cooled chilled (heat pump) units



    Overview



    Inheriting the supreme air cooling design from EK Italy and equipped with the leading-edge European design for large-scale air-cooled units, EKAS screw-type air-cooled chilled (heat pump) units feature patented double screw compressors and highefficiency dry evaporators. With optimized system configuration,
    units of this series are efficient, energy saving, reliable, easy to maintain and cost-effective (low operation cost). They are ideal choices for central air conditioning systems of hotels, guest houses, office buildings, schools, hospitals and factories, etc.





    Features



    1. Patent-protected Double Screw Compressor - High Efficiency, Low Noise

    Stepless modulation,Double-layered shell,Simple oil return without oil pump,Patented rotor design,Inlet   air      filter.



    2. Efficient Heat Exchanger with Outstanding Performance.

    The heat exchanger of EKAS screw-type air-cooled chilled (heat pump) units is EU and ASME certified and features patented refrigerant allocation design. With efficient internalthreaded copper tubes as the heat exchanging medium, the heat exchanger greatly enhances heat transfer between the water and refrigerant, thus lowering power consumption and operation cost.
    ■ To facilitate on-site installation, standard pipe connection for heat exchangers is groove yoke connection (with stub tube). Each evaporator and condenser are equipped with separate
    air and water discharge devices.
    ■ The oil circuit features a simple design (no oil pump) that facilitates oil return to eliminate the risk of freeze-crack on heat exchanging pipes.
    ■ The refrigerant is only 1/3 of that in common heat exchangers, which eliminates the risk of leakage and makes the unit more environment-friendly and reliable.



    3. Reliable and Precise Control by Electronic Expansion Valve

    Full series of units feature electronic expansion valves for optimum superheating control, bringing about high unit performance. With precise PID throttle control by the electronic expansion valve, the refrigerant can be well controlled and outlet air from the compressor can be monitored for compressor protection.



    4. W-shaped Air-side Heat Exchanger for Better Performance.

    The W-shaped air-side heat exchanger features a leading-edge design - coated with wavy aluminum cooling fins and embedded with well-arranged seamless copper tubes with high quality and full mechanical expansion. Even air flow after CAE analysis eliminates interference between the air-side heat exchanger and the fan, bringing about highly efficient heat exchange. Heat exchanger coils are connected to the supercooling circuit (for cooling only units) to avoid too much evaporation of liquid refrigerant, bringing about higher cooling capacity.



    5. Wide Operation Range and Long Service Life

    With shells made from galvanized steel plates and coated with corrosion-proof paint by electrostatic spray, the units are corrosion-proof and adaptable to various harshenvironments.
    ■ Adaptable to wide outdoor temperature range: -15°C ~ 43°C.
    ■ Accurate and efficient auto defrosting and unconditional manual defrosting (if necessary) effectively extend the service life of units.
    ■ By exchange heat directly with the atmosphere, the units are environment friendly and contamination free.



    6.Patented Airscrew Fan - High Air Flow with Low Noise

    Featuring EK low-noise design, the unit fan can effectively prevent air vortex, bringing about higher air flow with little noise.
    ■ The optimum curvy design of impeller edges helps eliminating air vortex, bringing about higher rev and
    efficiency while reducing noise.
    ■ With overheat protection and no racing, the motor features a longer service life.
    ■ The motor features direct transmission to effectively reduce transmission loss and vibration.
    ■ Fan motors with high static pressure are also available for various applications requiring static pressure



    7.Easy Installation, Simple Maintenance

    Power and water are enough to get the unit running. No special equipment room, cooling tower or other auxiliaries are needed.
    ■ Power supply equipment is built into the unit, eliminating the need for complex wiring and special power distribution cabinet.
    ■ The smart control system automatically monitors and controls unit operation, and displays causes of errors to facilitate maintenance.



    8.Compact Structure, Easy Installation

    ■ The unit features a compact structure, integrated startup and control system, extended handle for the general switch, and auto-lock protection after the general switch is closed for safer cabinet door access.
    ■ The whole unit is compact and tidy, featuring a graceful exterior and small volume. This facilitates transportation and reduces the area of equipment room. A little pipelining and wiring are all that needed during installation. Therefore, both installation cost and period are significantly reduced.







    Applications:



    Business Organizations

    supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

    Financial Organizations

    Banks, negotiable securities, funds, insurance companies, pawnshops;

    Non-profit Organizations: Telecommunications, post offices, hospital, schools;

    Public Places

    subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

    Entertainments

    Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course



    Large Capacity R407C Air Cooled Screw Chiller Heat Pump Units 284.1-1639.7KW



    Specification





    Model   EKAS085 EKAS095 EKAS115 EKAS125 EKAS140 EKAS150 EKAS165 EKAS180
    Nominal cooling capacity kW 284.1 328.3 388.0 410.3 473.7 509.4 557.3 601.0
    USRT 80.8 93.3 110.3 116.7 134.7 144.8 158.5 170.9
    ×104kcal/h 24.4 28.2 33.4 35.3 40.7 43.8 47.9 51.7
    Nominal heating capacity* kW 322.7 354.7 426.9 431.3 491.6 528.6 578.4 623.7
    USRT 91.8 100.9 121.4 122.6 139.8 150.3 164.4 177.3
    ×104kcal/h 27.8 30.5 36.7 37.1 42.3 45.5 49.7 53.6
    Partial heat recovery capacity kW 71.0 82.1 97.0 102.6 118.4 127.3 139.3 150.2
    ×104kcal/h 6.1 7.1 8.3 8.8 10.2 11.0 12.0 12.9
    Cooling compressor power kW 93.1 101.3 123.9 128.6 146.1 157.0 171.4 182.0
    Heating compressor power kW 95.8 104.1 124.1 135.1 153.4 164.8 179.9 189.6
    Capacity modulation   25% ~ 100% stepless modulation
    Startup type   Y-Δ
    Power supply   380V/3~/50Hz
    Refrigerant Type   R407C
    Circuit Qty.   1 1 1 1 1 1 1 1
    Control mode   Electronic expansion valve
    Compressor Type   Semi-closed double screw type
    Qty.   1 1 1 1 1 1 1 1
    Lubricant Code   EK02
    Filling quantity   13x1 13x1 13x1 13x1 19x1 19x1 23x1 23x1
    Fan Type   Spiral axial fan
    Qty. No. 6 8 8 8 10 10 12 12
    Capacity kW 10.8 14.4 14.4 14.4 18.0 18.0 21.6 21.6
    Air flow ×104m3/h 12 16 16 16 20 20 24 24
    Air side heat exchanger Type   Fins
    Density piece/inch 16FPI
    Water side heat exchanger Type   Dry shell-tube type
    Water flow for cooling m3/h 48.9 56.5 66.7 70.6 81.5 87.6 95.9 103.4
    Pressure drop of cooling water kPa 58 62 73 64 66 61 51 56
    Water flow for heating* m3/h 55.5 61.0 73.4 74.2 84.6 90.9 99.5 107.3
    Pipe diameter inch 4 5 5 5 5 8 8 8
    Heat exchanger at the heat
    recovery side
    Type   Plate heat exchanger
    Water flow m3/h 12.2 14.1 16.7 17.6 20.4 21.9 24.0 25.8
    Pipe diameter inch 2 2 2 2 2 2 2 2
    Rated current A 185 207 246 254 292 311 344 362
    Startup current A 250 278 326 338 388 413 455 480
    Max. startup current A 357 357 478 478 660 660 749 749
    Dimensions Length mm 3200 4100 4100 4100 5000 5000 5900 5900
    Width mm 2260 2260 2260 2260 2260 2260 2260 2260
    Height mm 2525 2525 2525 2525 2525 2525 2525 2525
    Weight of a single indoor unit Shipment of cooling only units kg 3865 4015 4165 4765 4810 4810 5380 5500
    Operation of cooling only units kg 4015 4165 4315 4915 4966 4966 5540 5660
    Shipment of heat pump units kg 3950 4100 4250 4850 4900 4900 5480 5600
    Operation of heat pump units kg 4100 4250 4400 5000 5056 5056 5640 5760

    Model   EKAS190 EKAS200 EKAS210 EKAS225 EKAS235 EKAS250 EKAS275 EKAS300
    Nominal cooling capacity kW 636.4 683.3 728.2 797.2 819.9 820.6 919.7 1018.7
    USRT 181.0 194.3 207.1 226.7 233.1 233.3 261.5 289.7
    ×104kcal/h 54.7 58.8 62.6 68.6 70.5 70.6 79.1 87.6
    Nominal heating capacity* kW 660.5 709.1 749.9 813.3 838.6 862.7 959.9 1057.2
    USRT 187.8 201.6 213.2 231.2 238.4 245.3 272.9 300.6
    ×104kcal/h 56.8 61.0 64.5 69.9 72.1 74.2 82.6 90.9
    Partial heat recovery capacity kW 159.1 170.8 182.1 199.3 205.0 205.2 229.9 254.7
    ×104kcal/h 13.7 14.7 15.7 17.1 17.6 17.6 19.8 21.9
    Cooling compressor power kW 192.8 206.9 207.8 221.3 227.4 257.2 285.6 314.1
    Heating compressor power kW 200.8 215.1 214.2 226.6 232.4 270.2 299.9 329.6
    Capacity modulation   25% ~ 100% stepless modulation 12.5%~100% stepless modulation
    Startup type   Y-Δ
    Power supply   380V/3~/50Hz
    Refrigerant Type   R407C
    Circuit Qty.   1 1 1 1 1 2 2 2
    Control mode   Electronic expansion valve
    Compressor Type   Semi-closed double screw type
    Qty.   1 1 1 1 1 2 2 2
    Lubricant Code   EK02
    Filling quantity   23x1 23x1 23x1 23x1 23x1 13x2 19+13 19x2
    Fan Type   Spiral axial fan
    Qty. No. 12 14 14 16 16 16 18 20
    Capacity kW 21.6 25.2 25.2 28.8 28.8 28.8 32.4 36.0
    Air flow ×104m3/h 24 28 28 32 32 32 36 40
    Air side heat exchanger Type   Fins
    Density piece/inch 16FPI
    Water side heat exchanger Type   Dry shell-tube type
    Water flow for cooling m3/h 109.5 117.5 125.3 137.1 141.0 141.2 158.2 175.2
    Pressure drop of cooling water kPa 43 51 56 73 44 45 53 64
    Water flow for heating* m3/h 113.6 122.0 129.0 139.9 144.2 148.4 165.1 181.8
    Pipe diameter inch 8 8 8 8 8 8 8 8
    Heat exchanger at the heat
    recovery side
    Type   Plate heat exchanger
    Water flow m3/h 27.4 29.4 31.3 34.3 35.3 35.3 39.5 43.8
    Pipe diameter inch 2 2 2 2 2 2 2 2
    Rated current A 381 413 415 446 457 508 565 622
    Startup current A 505 548 549 590 594 676 751 826
    Max. startup current A 882 882 882 882 882 732 931 931
    Dimensions Length mm 5900 6800 6800 7700 7700 8100 9000 9900
    Width mm 2260 2260 2260 2260 2260 2260 2260 2260
    Height mm 2525 2525 2525 2525 2525 2525 2525 2525
    Weight of a single indoor unit Shipment of cooling only units kg 5520 5555 5755 5805 5835 9580 9675 9670
    Operation of cooling only units kg 5680 5715 5935 5985 6015 9880 9987 9982
    Shipment of heat pump units kg 5620 5670 5870 5920 5950 9750 9850 9850
    Operation of heat pump units kg 5780 5830 6050 6100 6130 10050 10162 10162

    Model   EKAS330 EKAS360 EKAS380 EKAS400 EKAS420 EKAS445 EKAS470
    Nominal cooling capacity kW 1110.3 1201.9 1284.3 1366.6 1456.4 1548.1 1639.7
    USRT 315.7 341.7 365.2 388.6 414.1 440.2 466.2
    ×104kcal/h 95.5 103.4 110.4 117.5 125.3 133.1 141.0
    Nominal heating capacity* kW 1152.2 1247.3 1332.7 1418.2 1499.8 1588.5 1677.3
    USRT 327.6 354.6 378.9 403.2 426.4 451.7 476.9
    ×104kcal/h 99.1 107.3 114.6 122.0 129.0 136.6 144.2
    Partial heat recovery capacity kW 277.6 300.5 321.1 341.6 364.1 387.0 409.9
    ×104kcal/h 23.9 25.8 27.6 29.4 31.3 33.3 35.3
    Cooling compressor power kW 339.0 364.0 388.9 413.8 415.6 435.2 454.8
    Heating compressor power kW 354.4 379.2 404.7 430.3 428.4 446.6 464.9
    Capacity modulation   12.5%~100% stepless modulation
    Startup type   Y-Δ
    Power supply   380V/3~/50Hz
    Refrigerant Type   R407C
    Circuit Qty.   2 2 2 2 2 2 2
    Control mode   Electronic expansion valve
    Compressor Type   Semi-closed double screw type
    Qty.   2 2 2 2 2 2 2
    Lubricant Code   EK02
    Filling quantity   23x2 23x2 23x2 23x2 23x2 23x2 23x2
    Fan Type   Spiral axial fan
    Qty. No. 22 24 26 28 28 30 32
    Capacity kW 39.6 43.2 46.8 50.4 50.4 54.0 57.6
    Air flow ×104m3/h 44 48 52 56 56 60 64
    Air side heat exchanger Type   Fins
    Density piece/inch 16FPI
    Water side heat exchanger Type   Dry shell-tube type
    Water flow for cooling m3/h 191.0 206.7 220.9 235.1 250.5 266.3 282.0
    Pressure drop of cooling water kPa 47 54 64 75 84 48 54
    Water flow for heating* m3/h 198.2 214.5 229.2 243.9 258.0 273.2 288.5
    Pipe diameter inch 8 8 8 8 8 8 8
    Heat exchanger at the heat
    recovery side
    Type   Plate heat exchanger
    Water flow m3/h 47.7 51.7 55.2 58.8 62.6 66.6 70.5
    Pipe diameter inch 2 2 2 2 2 2 2
    Rated current A 673 724 775 826 829 871 913
    Startup current A 893 960 1028 1096 1098 1153 1188
    Max. startup current A 1063 1063 1215 1239 1241 1241 1275
    Dimensions Length mm 10800 11700 12600 13500 13500 14400 15300
    Width mm 2260 2260 2260 2260 2260 2260 2260
    Height mm 2525 2525 2525 2525 2525 2525 2525
    Weight of a single indoor unit Shipment of cooling only units kg 10820 11060 11075 11160 11560 11660 11720
    Operation of cooling only units kg 11140 11380 11395 11480 11920 12020 12080
    Shipment of heat pump units kg 11010 11250 11290 11390 11790 11890 11950
    Operation of heat pump units kg 11330 11570 11610 11710 12150 12250 12310
