|Place of Origin:||China|
|Certification:||ISO9001, ISO14001, OHSAS18001, CRAA, CQC|
|Minimum Order Quantity:||1 pcs|
|Delivery Time:||4 weeks after received your payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||900pcs per month|
|Product Name:||Water Cooled Package Unit||Compressor Type:||High-efficiency Fully Hermetic Volute Compressor|
horizontal water source heat pump,
geothermal ground source heat pumps

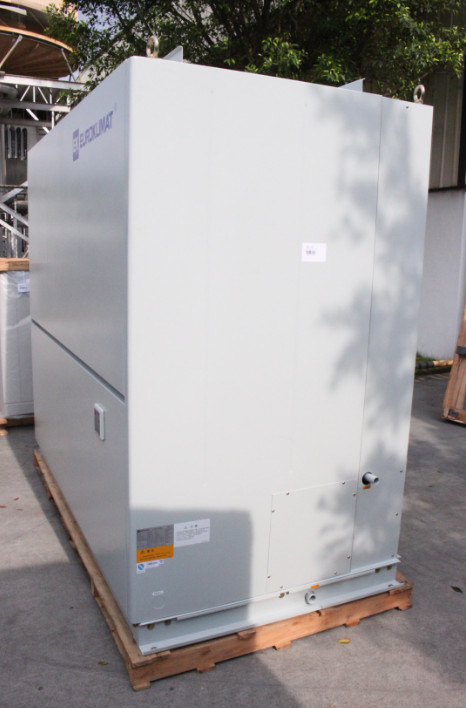

EKWP-B Series Packaged Water-cooled Cabinet Units
|External static pressure||Pa||200|
|Cooling capacity modulation range||%||100,80,60,40,20,0|
|Total input power for||kW||23|
|Compressor||Type||High-efficiency fully hermetic volute compressor|
|Condenser||Type||High-efficiency shell-tube heat exchanger|
|Water pressure drop||kPa||22|
|Evaporator||Type||Shutter-type hyperbolic fins made from mechanically expanded quality copper tubes specially designed for air conditioners|
|Fan||Type||Low-noise centrifugal fan with dual air inlets|
|Models for cooling only units with electric heaters||EKWP100BD|
|Electric heating capacity||W||42|
|Weight of models with electric heaters||kg||885|
EKWP-B series water-cooled packaged units are a new generation of modular air-conditioning units featuring the state-of-art EK air conditioner designs. They have complete models and a wide application range. Some models are equipped with a static pressure box and can be used for direct air supply. EKWP series units are widely used in marketplaces, hotels, schools, banks, post offices and industrial processes. Electric heaters are available for all models to serve heating purposes.
• All units are equipped with compliant scroll compressors of the latest design, making the units more reliable, stable, comfort and energy-efficient compared to units using traditional compressors.
• EKWP35B and later models have multiple independent cooling systems, which facilitate capacity modulation and help saving more energy.
• Full series models can be equipped with optional electric heaters.
• Controlled by micro-computers, the units are easier to operate and run more smoothly.
EKWP-B water-cooled packaged units are equipped with a complete suite of smart control functions.
Four operation modes: COOL/HEAT/FAN/COOL&HEAT, namely cooling/heating/air supply/auto (cooling & heating) (Cooling-only units only have a COOL mode. All features are disabled in the HEAT mode).
Temperature setting range (TEMP): 16°C~30°C.
Timer for ON/OFF (TIMER): 1~24 hours
Energy saver (EG-SAVER)
Auto failure detection and alarm
The LED digital display shows the temperature setting, timed on/off or alarms.
Protective time lag for compressor startup/shutdown
Auto load-balancing for compressors:
The unit controller automatically records the working time of each compressor. Compressors that worked fewer hours have a higher priority for startup, while compressor that worked more hours have a higher priority for shutdown.
The units can be turned on/off within a 1000-meter range.
Centralized Remote Control and Smart BMS Control
Using a special data converter, you can apply centralized network control over 32 x 32 (1024) water-cooled packaged units within a 1000-meter range. In addition, these units can also be networked into a BMS (Modbus protocol) using special data concreters and gateways.
EKWP series units are widely used in marketplaces, hotels, schools, banks, post offices and industrial processes. Electric heaters are available for all models to serve heating purposes.
EKWP-B series water-cooled packaged units are a new generation of modular air-conditioning units featuring the state-of-art EK air conditioner designs. They have complete models and a wide application range. Some models are equipped with a static pressure box and can be used for direct air supply.
