Cooling Capacity(kW): | 284.1-819.9KW | Heating Capacity(kW): | 322.7-838.6KW |
---|---|---|---|
Cooling Power Input(kW): | 93.1-227.4KW | Heating Power Input(kW): | 95.8-232.4KW |
Refrigerant: | R407C | Compressor Type: | Semi-closed Double Screw Type |
Power Supply: | 380V/3~/50Hz | Capacity Modulation: | 25%~100% Stepless Modulation |
High Light: | industrial water chiller units,commercial air source heat pump |
EK keeps looking for valuable distributors and partners around international markets…

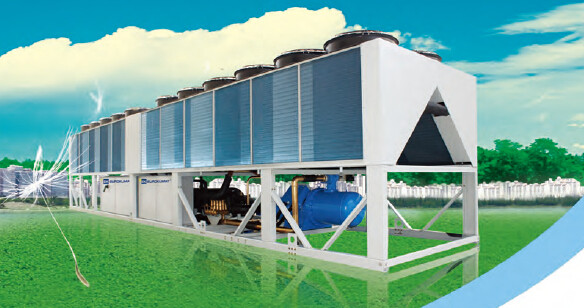

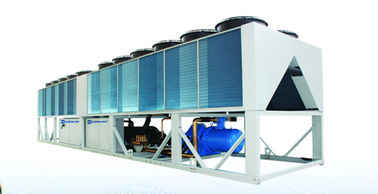

Screw-type air-cooled chilled (heat pump) units
Overview
Inheriting the supreme air cooling design from EK Italy and equipped with the leading-edge European design for large-scale air-cooled units, EKAS screw-type air-cooled chilled (heat pump) units feature patented double screw compressors and highefficiency dry evaporators. With optimized system configuration,
units of this series are efficient, energy saving, reliable, easy to maintain and cost-effective (low operation cost). They are ideal choices for central air conditioning systems of hotels, guest houses, office buildings, schools, hospitals and factories, etc.
Features
1.Patent-protected Double Screw Compressor - High Efficiency, Low Noise
Stepless modulation,Double-layered shell,Simple oil return without oil pump,Patented rotor design,Inlet air filter.
2.Efficient Heat Exchanger with Outstanding Performance.
The heat exchanger of EKAS screw-type air-cooled chilled (heat pump) units is EU and ASME certified and features patented refrigerant allocation design. With efficient internalthreaded copper tubes as the heat exchanging medium, the heat exchanger greatly enhances heat transfer between the water and refrigerant, thus lowering power consumption and operation cost.
■ To facilitate on-site installation, standard pipe connection for heat exchangers is groove yoke connection (with stub tube). Each evaporator and condenser are equipped with separate
air and water discharge devices.
■ The oil circuit features a simple design (no oil pump) that facilitates oil return to eliminate the risk of freeze-crack on heat exchanging pipes.
■ The refrigerant is only 1/3 of that in common heat exchangers, which eliminates the risk of leakage and makes the unit more environment-friendly and reliable.
3.Reliable and Precise Control by Electronic Expansion Valve
Full series of units feature electronic expansion valves for optimum superheating control, bringing about high unit performance. With precise PID throttle control by the electronic expansion valve, the refrigerant can be well controlled and outlet air from the compressor can be monitored for compressor protection.
4.W-shaped Air-side Heat Exchanger for Better Performance.
The W-shaped air-side heat exchanger features a leading-edge design - coated with wavy aluminum cooling fins and embedded with well-arranged seamless copper tubes with high quality and full mechanical expansion. Even air flow after CAE analysis eliminates interference between the air-side heat exchanger and the fan, bringing about highly efficient heat exchange. Heat exchanger coils are connected to the supercooling circuit (for cooling only units) to avoid too much evaporation of liquid refrigerant, bringing about higher cooling capacity.
5.Wide Operation Range and Long Service Life
With shells made from galvanized steel plates and coated with corrosion-proof paint by electrostatic spray, the units are corrosion-proof and adaptable to various harshenvironments.
■ Adaptable to wide outdoor temperature range: -15°C ~ 43°C.
■ Accurate and efficient auto defrosting and unconditional manual defrosting (if necessary) effectively extend the service life of units.
■ By exchange heat directly with the atmosphere, the units are environment friendly and contamination free.
6.Patented Airscrew Fan - High Air Flow with Low Noise
Featuring EK low-noise design, the unit fan can effectively prevent air vortex, bringing about higher air flow with little noise.
■ The optimum curvy design of impeller edges helps eliminating air vortex, bringing about higher rev and
efficiency while reducing noise.
■ With overheat protection and no racing, the motor features a longer service life.
■ The motor features direct transmission to effectively reduce transmission loss and vibration.
■ Fan motors with high static pressure are also available for various applications requiring static pressure
7.Easy Installation, Simple Maintenance
Power and water are enough to get the unit running. No special equipment room, cooling tower or other auxiliaries are needed.
■ Power supply equipment is built into the unit, eliminating the need for complex wiring and special power distribution cabinet.
■ The smart control system automatically monitors and controls unit operation, and displays causes of errors to facilitate maintenance.
8.Compact Structure, Easy Installation
■ The unit features a compact structure, integrated startup and control system, extended handle for the general switch, and auto-lock protection after the general switch is closed for safer cabinet door access.
■ The whole unit is compact and tidy, featuring a graceful exterior and small volume. This facilitates transportation and reduces the area of equipment room. A little pipelining and wiring are all that needed during installation. Therefore, both installation cost and period are significantly reduced.
Applications:
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools; |
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Specification
Model | EKAS 085 | EKAS 095 | EKAS 115 | EKAS 125 | EKAS 140 | EKAS 150 | EKAS 165 | EKAS 180 | EKAS 190 | EKAS 200 | EKAS 210 | EKAS 225 | EKAS 235 | ||
Nominal cooling capacity | kW | 284.1 | 328.3 | 388.0 | 410.3 | 473.7 | 509.4 | 557.3 | 601.0 | 636.4 | 683.3 | 728.2 | 797.2 | 819.9 | |
USRT | 80.8 | 93.3 | 110.3 | 116.7 | 134.7 | 144.8 | 158.5 | 170.9 | 180.9 | 194.3 | 207.1 | 226.7 | 233.1 | ||
×104kcal/h | 24.4 | 28.2 | 33.4 | 35.3 | 40.7 | 43.8 | 47.9 | 51.7 | 54.7 | 58.8 | 62.6 | 68.6 | 70.5 | ||
Nominal heating capacity* | kW | 322.7 | 354.7 | 426.9 | 431.3 | 491.6 | 528.6 | 578.4 | 623.7 | 660.5 | 709.1 | 749.9 | 813.3 | 838.6 | |
USRT | 91.8 | 100.9 | 121.4 | 122.6 | 139.8 | 150.3 | 164.5 | 177.3 | 187.8 | 201.6 | 213.2 | 231.2 | 238.4 | ||
×104kcal/h | 27.8 | 30.5 | 36.7 | 37.1 | 42.3 | 45.5 | 49.7 | 53.6 | 56.8 | 61.0 | 64.5 | 69.9 | 72.1 | ||
Total heat recovery capacity | kW | 389.9 | 431.7 | 518.7 | 540.9 | 616.0 | 651.4 | 725.9 | 779.8 | 825.8 | 901.6 | 933.0 | 1007.7 | 1020.7 | |
USRT | 110.9 | 122.8 | 147.5 | 153.8 | 175.2 | 185.2 | 206.4 | 221.7 | 234.8 | 256.4 | 265.3 | 286.5 | 290.2 | ||
×104kcal/h | 33.5 | 37.1 | 44.6 | 46.5 | 53.0 | 56.0 | 62.4 | 67.1 | 71.0 | 77.5 | 80.2 | 86.7 | 87.8 | ||
Cooling compressor power | kW | 93.1 | 101.3 | 123.9 | 128.6 | 146.1 | 157.0 | 171.4 | 182.0 | 192.8 | 206.9 | 207.8 | 219.7 | 227.4 | |
Heating compressor power | kW | 95.8 | 104.1 | 124.1 | 135.1 | 153.4 | 164.8 | 179.9 | 189.6 | 200.8 | 215.1 | 214.2 | 226.6 | 232.4 | |
Heat recovery power | kW | 101.0 | 109.9 | 131.3 | 135.9 | 154.5 | 166.0 | 181.3 | 192.5 | 203.8 | 218.8 | 219.8 | 234.2 | 240.6 | |
Capacity modulation | 25% ~ 100% stepless modulation | ||||||||||||||
Startup type | Y-Δ | ||||||||||||||
Power supply | 380V/3~/50Hz | ||||||||||||||
Refrigerant | Type | R22 | |||||||||||||
Circuit Qty. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
Control mode | Electronic expansion valve | ||||||||||||||
Compressor | Type | Semi-closed double screw type | |||||||||||||
Qty. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
Lubricant | Code | EK02 | |||||||||||||
Filling | 13x1 | 13x1 | 13x1 | 13x1 | 19x1 | 19x1 | 23x1 | 23x1 | 23x1 | 23x1 | 23x1 | 23x1 | 23x1 | ||
Fan | Type | Spiral axial fan | |||||||||||||
Qty. | No. | 6 | 8 | 8 | 8 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 16 | 16 | |
Capacity | kW | 10.8 | 14.4 | 14.4 | 14.4 | 18 | 18 | 21.6 | 21.6 | 21.6 | 25.2 | 25.2 | 28.8 | 28.8 | |
Air flow | ×104m3/h | 12 | 16 | 16 | 16 | 20 | 20 | 24 | 24 | 24 | 28 | 28 | 32 | 32 | |
Air side heat exchanger | Type | Fins | |||||||||||||
Density | piece/inch | 16FPI | |||||||||||||
Heat exchanger at water side of air conditioner | Type | Dry shell-tube type | |||||||||||||
Water flow for cooling |
m3/h | 48.9 | 56.5 | 66.7 | 70.6 | 81.5 | 87.6 | 95.9 | 103.4 | 109.5 | 117.5 | 125.3 | 137.1 | 141.0 | |
Pressure drop of cooling water | kPa | 58 | 62 | 73 | 64 | 66 | 61 | 51 | 56 | 43 | 51 | 56 | 73 | 44 | |
Water flow for heating* |
3 m /h |
55.5 | 61.0 | 73.4 | 74.2 | 84.6 | 90.9 | 99.5 | 107.3 | 113.6 | 122.0 | 129.0 | 139.9 | 144.2 | |
Pipe diameter | inch | 4 | 5 | 5 | 5 | 5 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
Heat exchanger at the heat recovery side |
Type | Plate heat exchanger | |||||||||||||
Water flow | m3/h | 67.1 | 74.3 | 89.2 | 93.0 | 106.0 | 112.0 | 124.9 | 134.1 | 142.0 | 155.1 | 160.5 | 173.3 | 175.6 | |
Pipe diameter | inch | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
Rated current | A | 153 | 165 | 201 | 209 | 237 | 255 | 279 | 296 | 313 | 413 | 415 | 446 | 457 | |
Startup current | A | 250 | 278 | 326 | 338 | 388 | 413 | 455 | 480 | 505 | 548 | 549 | 590 | 594 | |
Max. startup current | A | 357 | 357 | 478 | 478 | 660 | 660 | 749 | 749 | 882 | 882 | 882 | 882 | 882 | |

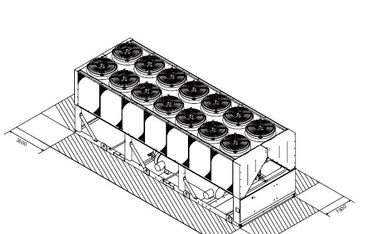

Dimensions | Length | mm | 3200 | 4100 | 4100 | 4100 | 5000 | 5000 | 5900 | 5900 | 5900 | 6800 | 6800 | 7700 | 7700 |
Width | mm | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | 2260 | |
Height | mm | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | 2525 | |
Weight of a single indoor unit | Transportation | kg | 4270 | 4500 | 4650 | 5400 | 5700 | 5700 | 6280 | 6400 | 6520 | 6570 | 6820 | 6870 | 6900 |
Operation | kg | 4420 | 4650 | 4800 | 5550 | 5856 | 5856 | 6440 | 6560 | 6680 | 6730 | 7000 | 7050 | 7080 |
