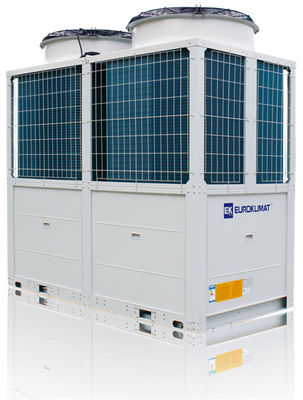

Total Heat Recovery 130KW Air Cooled Modular Chiller

Total Heat Recovery 130KW Air Cooled Modular Chiller

  • Total Heat Recovery 130KW Air Cooled Modular Chiller
  • Total Heat Recovery 130KW Air Cooled Modular Chiller
  • Total Heat Recovery 130KW Air Cooled Modular Chiller
  • Total Heat Recovery 130KW Air Cooled Modular Chiller
Total Heat Recovery 130KW Air Cooled Modular Chiller
Product Details:
Place of Origin: China
Brand Name: EuroKlimat
Certification: ISO9001, ISO14001, OHSAS18001, CRAA, CQC
Model Number: EKAC460BR1SR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 200 per ton
Packaging Details: Plywood
Delivery Time: 15 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 3,000 pcs per month
Contact Now
Detailed Product Description
Type: Air Cooled Voltage: 380V/3/50HZ
Weight: 1080 KG Dimension(l*w*h): 2015mm*1150mm*2260mm
Cooling Capacity: 130 Kw Heating Capacity: 138 Kw
Compressor Type: Scroll Compressor: Copeland
Application: Pharmaceutical, Exhibition Hall, Office Building, Food, HVAC System , Industrial Process Cooling Evaporator Type: Plate Heat Exchanger
High Light:

130KW Air Cooled Modular Chiller

,

CQC Air Cooled Modular Chiller

,

130KW Air Cooled Water Chiller

Totally Heat Recovery Air Cooled Modular Chiller 130KW



Features

1. Copeland scroll compressor or Danfoss scroll compressor
2. Plate heat exchanger / tank heat exchanger
3. Modular design , max 16 units work together
4. Industrial cooling application , and min -10 C outlet temperature
5. Outlet temperature control
6. Total heat recovery





The EKAC series total heat recovery modular air-cooled heatpump units introduce design and development essence of Europe total heat recovery technology, which perfectly combineair-cooled chiller and air source heat pump hot water unit. Inaddition to addressing cooling needs in summer and heatingneeds in winter, the unit can produce 40ºC to 50ºC domestichot water around the clock. It can replace hot water boilers,thus saving investment in hot water boilers and equipmentrooms. This can not only protect the environment, but alsosaves the operating cost. The unit can recover waste heatreleased from cooling, thus effectively avoiding “heat island effect" ;





Specifications:





Model: EKAC460
BR1SRM/S
Air conditioning mode Nominal cooling capacity kW 130
Nominal heating capacity kW 138
Total power of nominal cooling capacity kW 40
Nominal cooling operation current A 70.8
Total power of nominal heating capacity kW 40.4
Nominal heating operation current A 71.5
Water flow Nominal cooling capacity m³/h 22.4
Nominal heating capacity m³/h 23.7
Performance parameter W/W 3.25
Hot Water Mode Circular water flow m³/h 27.9
Nominal heating capacity kW 162
Total power of nominal
hot water provision capacity
kW 41.5
Cooling
+
Hot Water Mode
Nominal cooling capacity kW 119
Nominal heat recovery capacity kW 158
Total nominal power kW 39
Water flow Hot water m³/h 27.9
Chilled water at air conditioning side m³/h 22.4


Note:

■  Cooing capacity tested on : chilled water outlet temperature 7°C , water flow: 0.172m3/(h·kW),outdoor temperature 35 °C ;
■  Heating capacity: hot water outlet temperature 45°C ,water flow: 0.172m3/(h·kW) ,outdoor dry/web bulb temperature 7°C/6°C;
